FRONT SIDE MEMBER ASSEMBLY REPLACEMENT (PATTERN 1)



  1. REMOVAL

    Symbol meaning

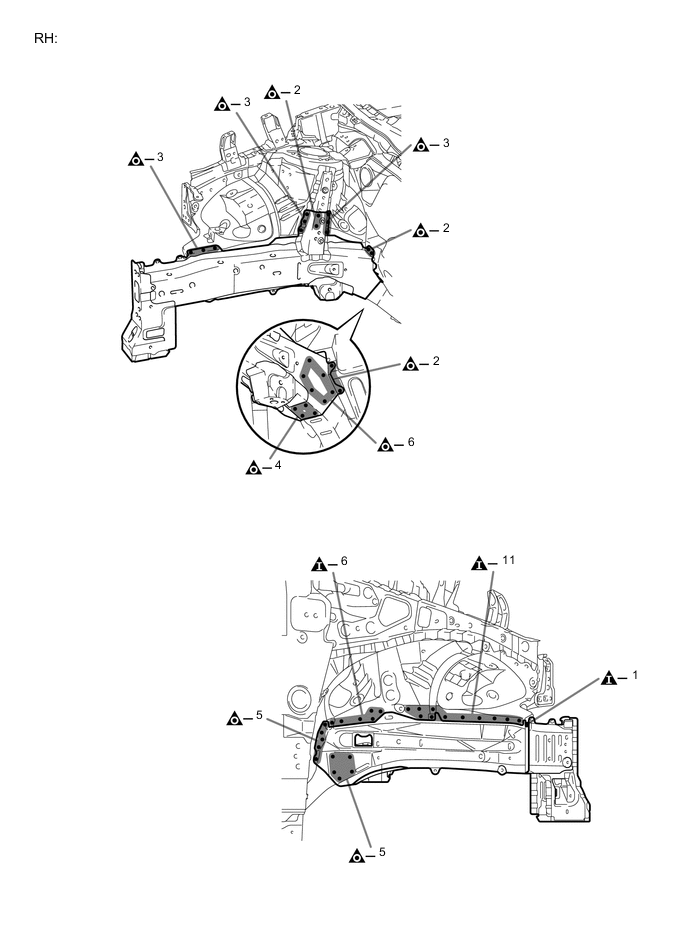

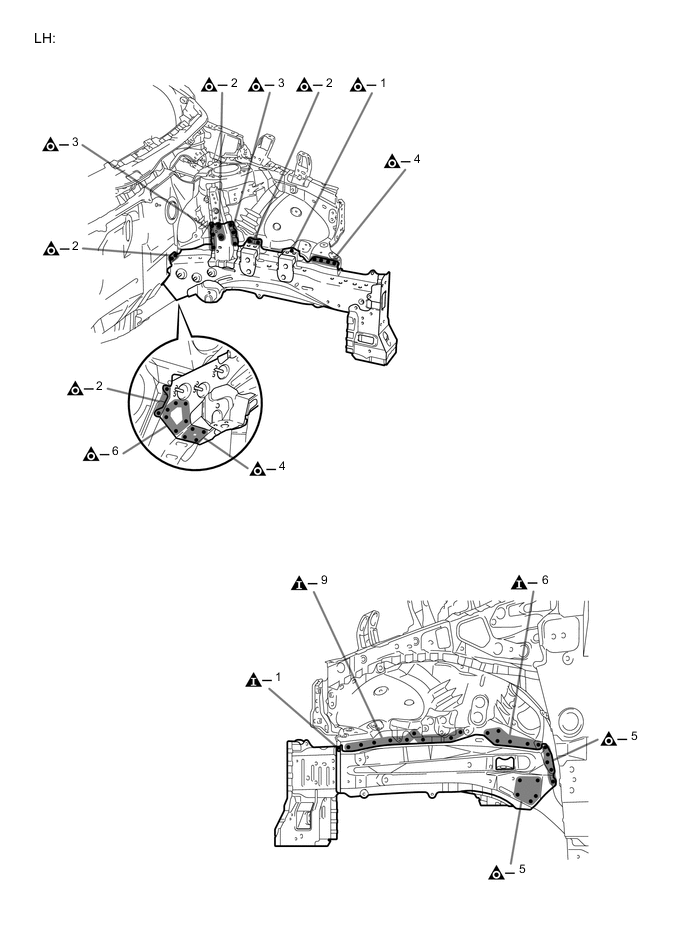

    A0050K6 Remove Weld Points
    A0050JA Remove Weld Points
    A0050J1E02
    A0050F0E02

  2. INSTALLATION

    Symbol meaning

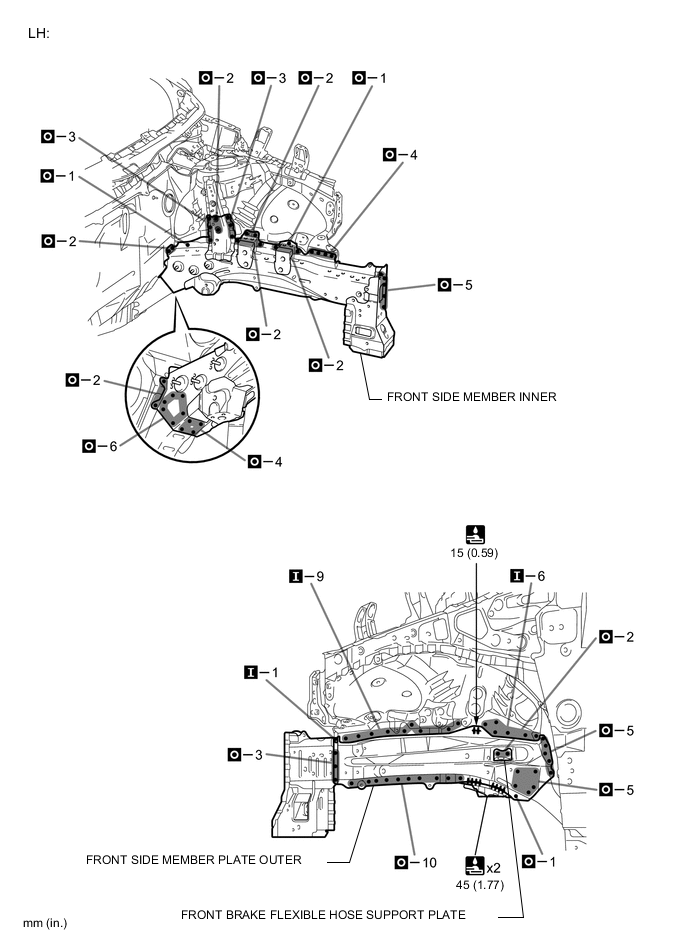

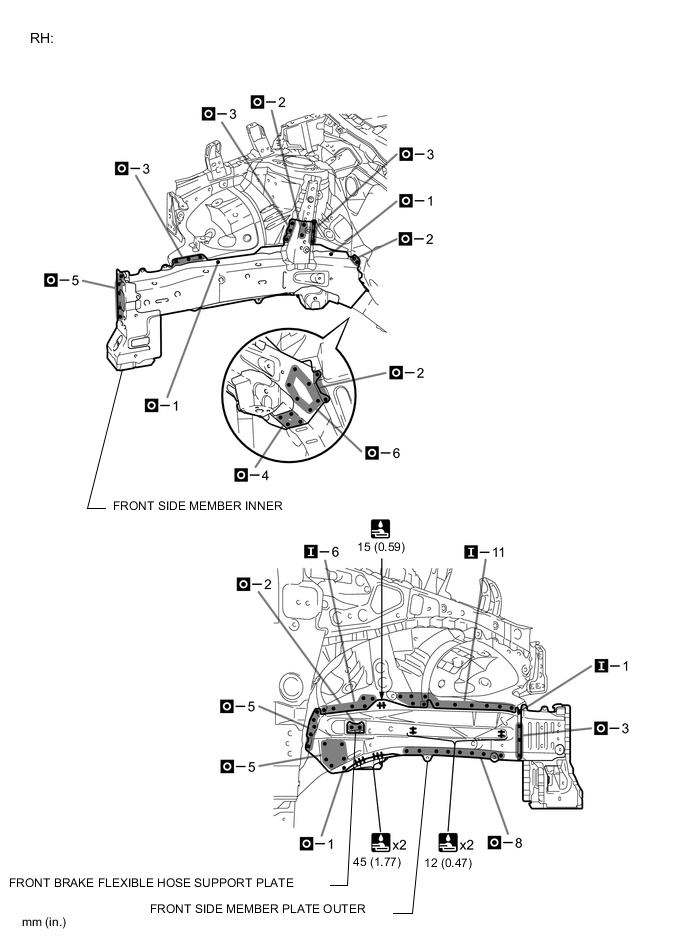

    A0050CS Plug Weld
    A0050HG Plug Weld
    A0050EP Fillet Weld

      INSTALLATION POINT

    1. Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimensions)

    2. Make sure to attach correctly in accordance with the body dimension diagram as this part affects the front wheel alignment.

    3. After welding, apply body sealer and undercoating to the corresponding parts. (See the painting / coating)

    4. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.

    A0050GNE01
    A0050FGE01
