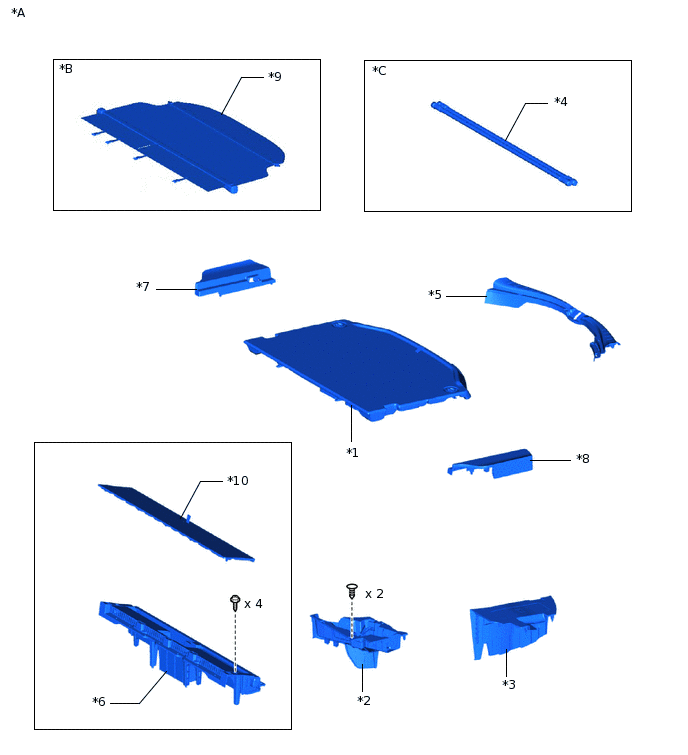

PARKING ASSIST ECU COMPONENTS
ILLUSTRATION
*A |
w/o Spare Tire, for Compact Spare Tire |
*B |
w/ Tonneau Cover |
*C |
w/ Partition Net |
- |
- |
*1 |
DECK BOARD ASSEMBLY |
*2 |
DECK FLOOR BOX LH |
*3 |
DECK TRIM SIDE COVER BASE LH |
*4 |
PACKAGE TRAY TRIM POCKET SUB-ASSEMBLY |
*5 |
REAR FLOOR FINISH PLATE |
*6 |
REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE |
*7 |
REAR NO. 2 FLOOR BOARD |
*8 |
REAR NO. 3 FLOOR BOARD |
*9 |
TONNEAU COVER ASSEMBLY |
*10 |
REAR NO. 1 FLOOR BOARD |
ILLUSTRATION
*A |
for Full Size Spare Tire |
*B |
w/ Tonneau Cover |
*C |
w/ Partition Net |
- |
- |
*1 |
DECK BOARD ASSEMBLY |
*2 |
DECK FLOOR BOX LH |
*3 |
DECK TRIM SIDE COVER BASE LH |
*4 |
PACKAGE TRAY TRIM POCKET SUB-ASSEMBLY |
*5 |
REAR DECK TRIM COVER |
*6 |
REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE |
*7 |
REAR NO. 2 FLOOR BOARD |
*8 |
REAR NO. 3 FLOOR BOARD |
*9 |
TONNEAU COVER ASSEMBLY |
*10 |
REAR NO. 1 FLOOR BOARD |

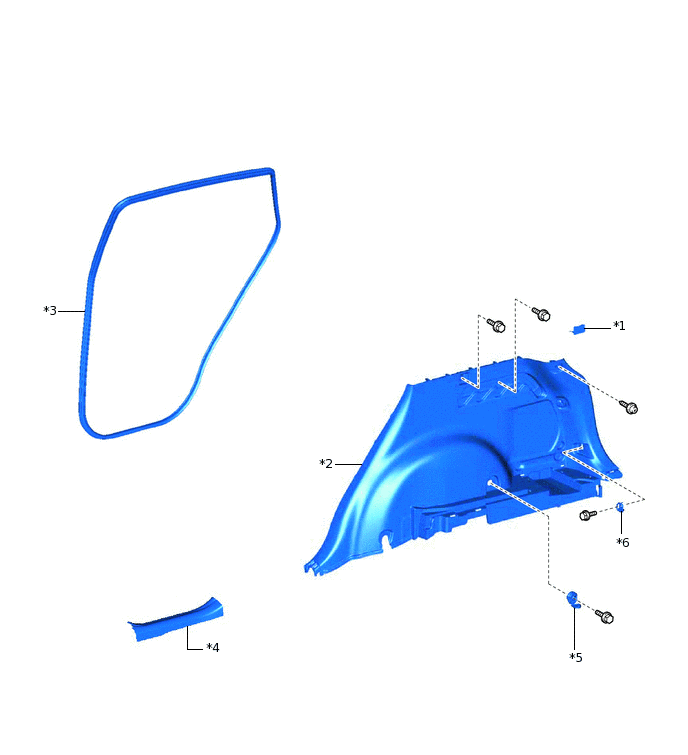

ILLUSTRATION
*1 |
DECK TRIM SERVICE HOLE COVER |
*2 |
DECK TRIM SIDE PANEL ASSEMBLY RH |
*3 |
REAR DOOR OPENING TRIM WEATHERSTRIP RH |
*4 |
REAR DOOR SCUFF PLATE RH |
*5 |
TETHER ANCHOR SET BRACKET COVER |
*6 |
LUGGAGE HOLD BELT STRIKER ASSEMBLY |

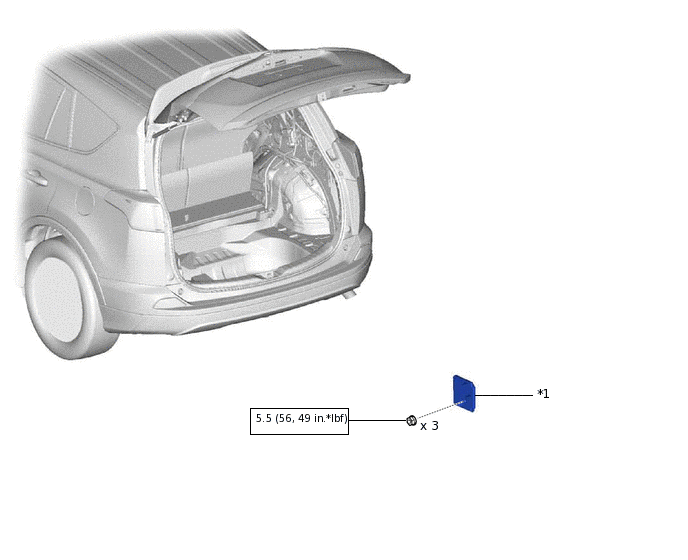

ILLUSTRATION
*1 |
PARKING ASSIST ECU |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
