ENGINE UNIT


  1. CONSTRUCTION


    1. A resin cylinder head cover sub-assembly is used. Ribs are positioned on the cylinder head cover sub-assembly to achieve weight reduction while improving rigidity and quietness.

    2. An oil delivery pipe is installed inside each cylinder head cover sub-assembly. This ensures lubrication to the sliding parts of the No. 1 valve rocker arm sub-assemblies, improving reliability.

    3. The resin baffle plate, oil delivery pipe and ejector are welded onto the cylinder head cover sub-assembly to reduce the number of parts.

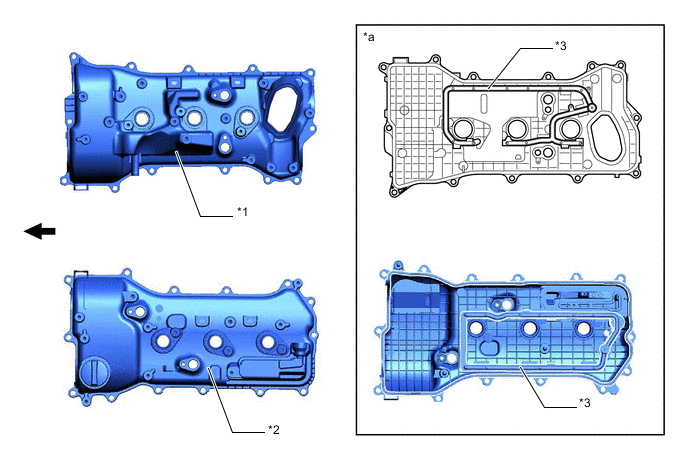

      B0023F2C01
      *1 Cylinder Head Cover Sub-assembly *2 Cylinder Head Cover Sub-assembly LH
      *3 Oil Delivery Pipe - -
      *a Cylinder Head Cover Sub-assembly Back View - -
      B0082XT Engine Front - -
