POWER SEAT SWITCH(for Rear No. 2 Seat) COMPONENTS
ILLUSTRATION
| *A | for Front Side | - | - |
| *1 | FOLD SEAT SWITCH ASSEMBLY | *2 | FRONT DECK SIDE TRIM COVER RH |
| *3 | REAR DOOR INSIDE SCUFF PLATE RH | *4 | REAR DOOR SCUFF PLATE RH |
| *5 | REAR SEAT SIDE GARNISH RH | - | - |

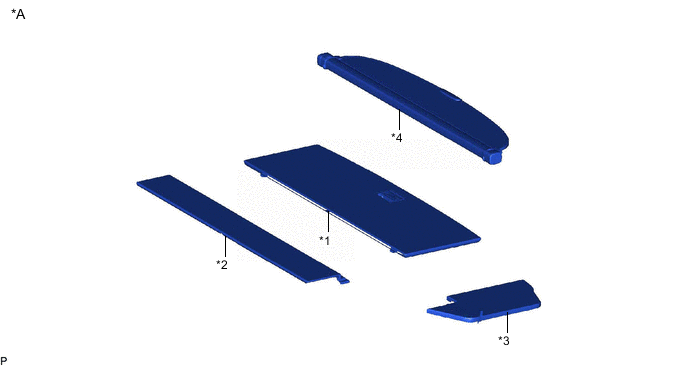

ILLUSTRATION
| *A | for Rear Side | - | - |
| *1 | DECK BOARD ASSEMBLY | *2 | NO. 1 DECK BOARD |
| *3 | REAR NO. 4 FLOOR BOARD | *4 | TONNEAU COVER ASSEMBLY |

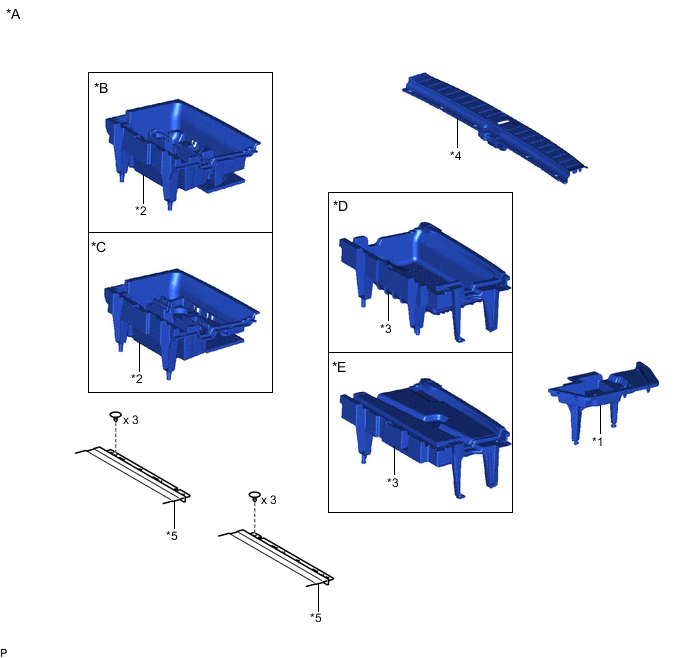

ILLUSTRATION
| *A | for Rear Side | *B | w/o Spare Tire |
| *C | w/ Spare Tire | *D | w/o Woofer |
| *E | w/ Woofer | - | - |
| *1 | DECK SIDE TRIM BOX LH | *2 | FRONT DECK FLOOR BOX |
| *3 | REAR DECK FLOOR BOX | *4 | REAR FLOOR FINISH PLATE |
| *5 | REAR NO. 2 SEAT ASSEMBLY | - | - |

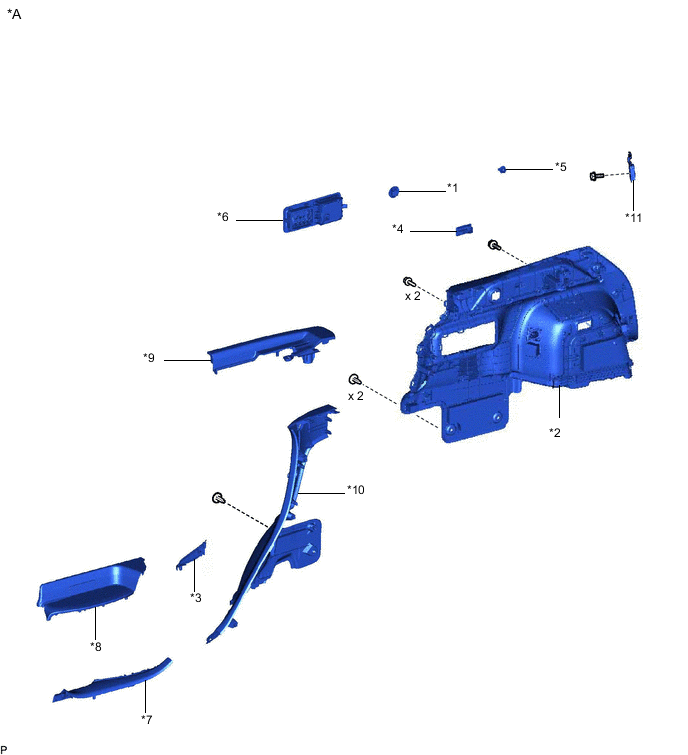

ILLUSTRATION
| *A | for Rear Side | - | - |
| *1 | COOLER (NO. 2 ROOM TEMP. SENSOR) THERMISTOR | *2 | DECK TRIM SIDE PANEL ASSEMBLY LH |
| *3 | FRONT DECK SIDE TRIM COVER LH | *4 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY |
| *5 | NO. 1 LUGGAGE COMPARTMENT TRIM HOOK | *6 | NO. 2 AIR CONDITIONING CONTROL ASSEMBLY |
| *7 | REAR DOOR INSIDE SCUFF PLATE LH | *8 | REAR DOOR SCUFF PLATE LH |
| *9 | REAR SEAT SIDE GARNISH LH | *10 | ROPE HOOK ASSEMBLY |

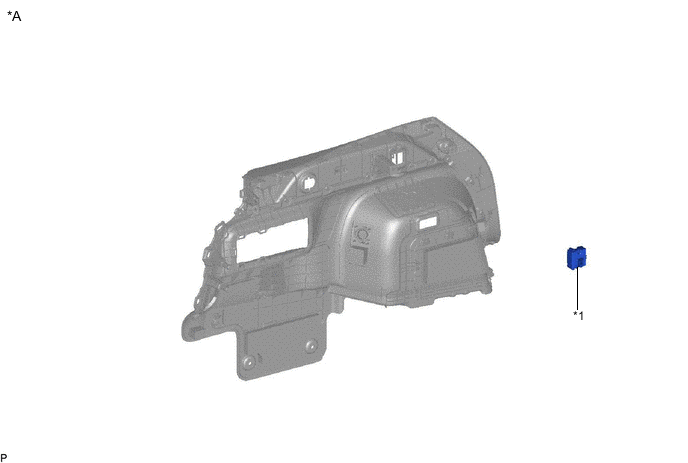

ILLUSTRATION
| *A | for Rear Side | - | - |
| *1 | NO. 1 FOLD SEAT SWITCH ASSEMBLY | - | - |
