DYNAMIC RADAR CRUISE CONTROL SYSTEM(for 2AR-FE) PARTS LOCATION

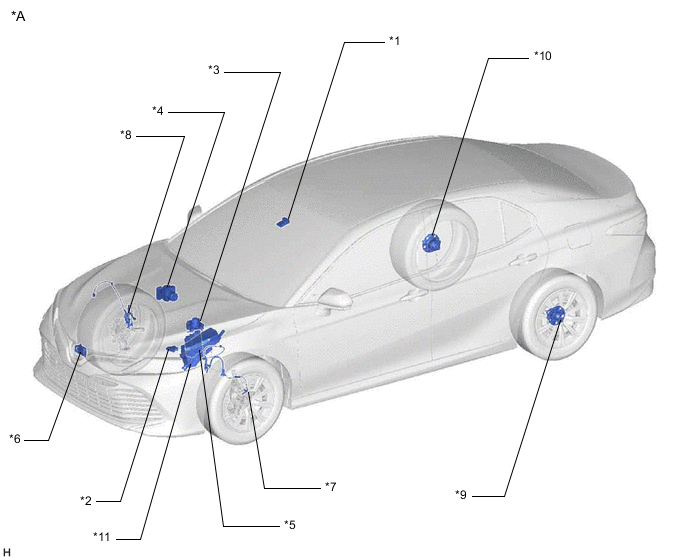

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | FORWARD RECOGNITION CAMERA | *2 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY |
| *3 | THROTTLE BODY WITH MOTOR ASSEMBLY | *4 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
| *5 | ECM | *6 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
| *7 | FRONT SPEED SENSOR LH | *8 | FRONT SPEED SENSOR RH |
| *9 | REAR AXLE HUB AND BEARING ASSEMBLY LH - REAR SPEED SENSOR LH |
*10 | REAR AXLE HUB AND BEARING ASSEMBLY RH - REAR SPEED SENSOR RH |
| *11 | ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY | - | - |

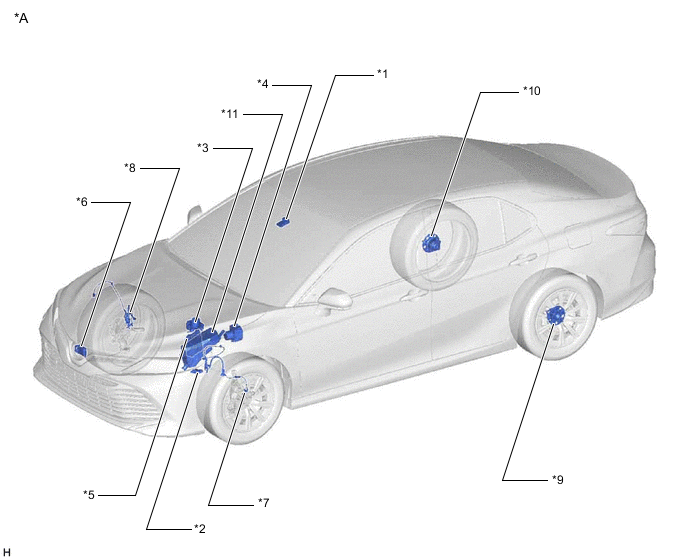

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | FORWARD RECOGNITION CAMERA | *2 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY |
| *3 | THROTTLE BODY WITH MOTOR ASSEMBLY | *4 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
| *5 | ECM | *6 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
| *7 | FRONT SPEED SENSOR LH | *8 | FRONT SPEED SENSOR RH |
| *9 | REAR AXLE HUB AND BEARING ASSEMBLY LH - REAR SPEED SENSOR LH |
*10 | REAR AXLE HUB AND BEARING ASSEMBLY RH - REAR SPEED SENSOR RH |
| *11 | ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY | - | - |

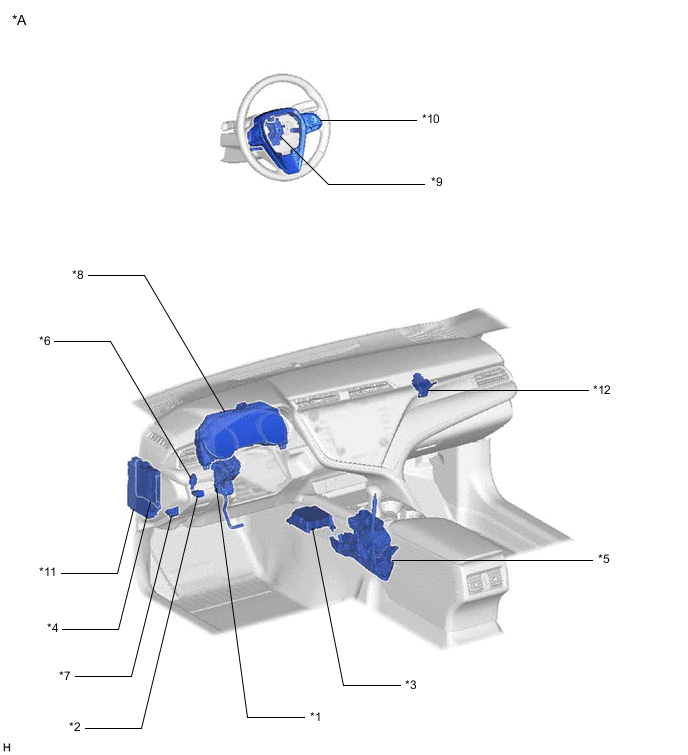

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | ACCELERATOR PEDAL SENSOR ASSEMBLY | *2 | VSC OFF SWITCH |
| *3 | AIRBAG SENSOR ASSEMBLY - YAW RATE AND ACCELERATION SENSOR |
*4 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *5 | SHIFT LOCK CONTROL UNIT ASSEMBLY - TRANSMISSION CONTROL SWITCH |
*6 | STOP LIGHT SWITCH ASSEMBLY |
| *7 | DLC3 | *8 | COMBINATION METER ASSEMBLY - Multi-information Display - Cruise Control Indicator - Cruise SET Indicator - Warning Buzzer - Master Warning Light |
| *9 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY - SPIRAL CABLE SUB-ASSEMBLY - STEERING SENSOR |
*10 | STEERING PAD SWITCH ASSEMBLY (CRUISE CONTROL SWITCH) - VEHICLE-TO-VEHICLE DISTANCE CONTROL SWITCH - CRUISE CONTROL MAIN SWITCH - -SET SWITCH - +RES SWITCH - CANCEL SWITCH |
| *11 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - STOP FUSE - AM2 FUSE - BKUP LP FUSE - ECU-IG1 NO. 3 FUSE - ECU-IG2 NO. 3 FUSE - IG1-NO. 1 RELAY - IG2-NO. 2 RELAY |
*12 | CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) |

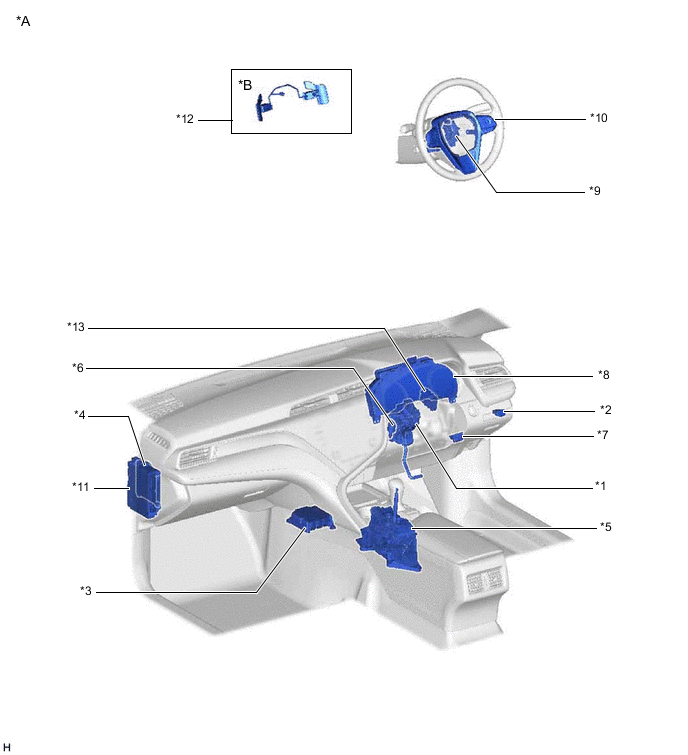

ILLUSTRATION
| *A | for RHD | *B | w/ Shift Paddle Switch |
| *1 | ACCELERATOR PEDAL SENSOR ASSEMBLY | *2 | VSC OFF SWITCH |
| *3 | AIRBAG SENSOR ASSEMBLY - YAW RATE AND ACCELERATION SENSOR |
*4 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *5 | SHIFT LOCK CONTROL UNIT ASSEMBLY - TRANSMISSION CONTROL SWITCH |
*6 | STOP LIGHT SWITCH ASSEMBLY |
| *7 | DLC3 | *8 | COMBINATION METER ASSEMBLY - Multi-information Display - Cruise Control Indicator - Cruise SET Indicator - Warning Buzzer - Master Warning Light |
| *9 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY - SPIRAL CABLE SUB-ASSEMBLY - STEERING SENSOR |
*10 | STEERING PAD SWITCH ASSEMBLY (CRUISE CONTROL SWITCH) - VEHICLE-TO-VEHICLE DISTANCE CONTROL SWITCH - CRUISE CONTROL MAIN SWITCH - -SET SWITCH - +RES SWITCH - CANCEL SWITCH |
| *11 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - STOP FUSE - AM2 FUSE - BKUP LP FUSE - ECU-IG1 NO. 3 FUSE - ECU-IG2 NO. 3 FUSE - IG1-NO. 1 RELAY - IG2-NO. 2 RELAY |
*12 | TRANSMISSION SHIFT SWITCH ASSEMBLY - SHIFT PADDLE SWITCH |
| *13 | CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) | - | - |
