LICENSE PLATE LIGHT ASSEMBLY REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE

  1. REMOVE NO. 1 BACK DOOR SERVICE HOLE COVER

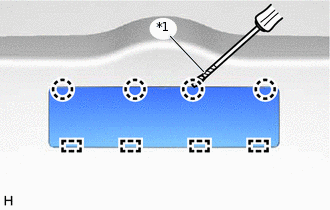

    1. E269042C01

      *1

      Protective Tape

      Using a screwdriver, detach the 4 claws and 4 guides to remove the No. 1 back door service hole cover.

      Tip:

      Tape the screwdriver tip before use.

  2. REMOVE LICENSE PLATE LIGHT ASSEMBLY LH

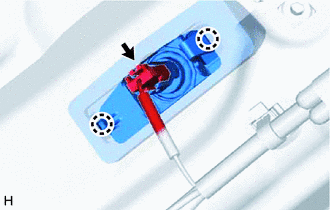

    E269043

    1. Disconnect the connector.

    2. Detach the 2 claws to remove the license plate light assembly LH.
