AIR FUEL RATIO SENSOR INSTALLATION

CAUTION / NOTICE / HINT

PROCEDURE

1. INSTALL AIR FUEL RATIO SENSOR



   *a	Torque Wrench Fulcrum Length

   Tip:

   Perform "Inspection After Repairs" after replacing the air fuel ratio sensor.

   • w/ EGR System:

     Click here

   • w/o EGR System:

     Click here

   • w/ Canister Pump Module:

     Click here

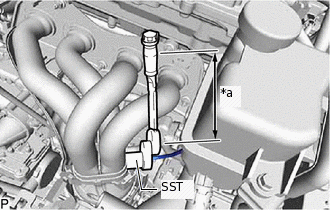

   1. Using SST, install the air fuel ratio sensor to the exhaust manifold.

      09224-00011

      Torque

      Specified tightening torque

      44 N*m (449 kgf*cm, 32 ft.*lbf)

      Note:

      Replace with a new part if it is dropped or if it receives a strong impact.

      Tip:

      • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

        Click hereClick hereClick hereClick here

      • When using SST (fulcrum length of 30 mm (1.18 in.)) + torque wrench (fulcrum length of 180 mm (7.09 in.)): 37.7 N*m (384 kgf*cm, 28 ft.*lbf)

   2. Connect the air fuel ratio sensor connector.

   3. Attach the radiator hose clamp.

2. INSTALL NO. 1 EXHAUST MANIFOLD HEAT INSULATOR

   Click here

3. CONNECT INVERTER RESERVE TANK ASSEMBLY

   Click here

4. CONNECT WIRE HARNESS

   Click here

5. INSPECT FOR EXHAUST GAS LEAK

   Click here
