ДАТЧИК ТЕМПЕРАТУРЫ ВОЗДУХА НА ВПУСКЕ ПРОВЕРКА


  1. INSPECT INTAKE AIR TEMPERATURE SENSOR

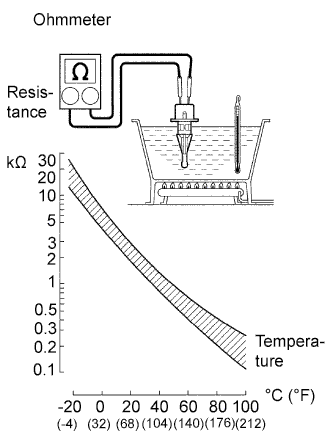

    1. B007QV4E05

      Using an ohmmeter, measure the resistance between the terminals.

      Standard resistance
      2.21 to 2.65 kΩ at 20°C (68°F)

      Note

      When checking the intake air temperature sensor in the water, keep the terminals dry. After the check, wipe the sensor dry.

      If the result is not as specified, replace the sensor.

  2. INSPECT DIESEL TURBO INLET AIR TEMPERATURE SENSOR

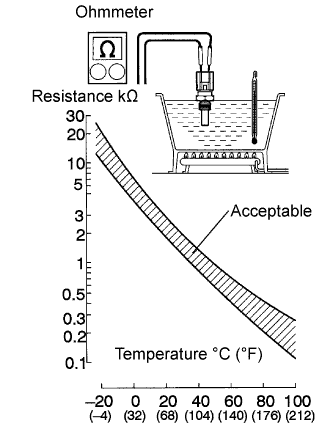

    1. B007SENE05

      Using an ohmmeter, measure the resistance between the terminals.

      Standard resistance
      2.21 to 2.65 kΩ at 20°C (68°F)

      Note

      When checking the intake air temperature sensor in the water, keep the terminals dry. After the check, wipe the sensor dry.

      If the result is not as specified, replace the sensor.
