SIDE TURN SIGNAL LIGHT ASSEMBLY INSPECTION

PROCEDURE

1. INSPECT SIDE TURN SIGNAL LIGHT ASSEMBLY LH

   1.

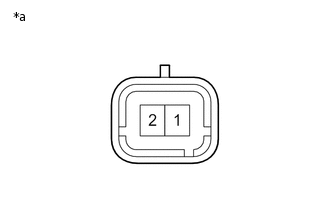

      *a	Component without harness connected (Side Turn Signal Light Assembly LH)

      Apply battery voltage to the side turn signal light assembly LH and check that the light comes on.

      OK

      Condition	Specified Condition
      Battery positive (+) → Terminal 2 Battery negative (-) → Terminal 1	Side turn signal light LH comes on

      If the result is not as specified, replace the side turn signal light assembly LH.

2. INSPECT SIDE TURN SIGNAL LIGHT ASSEMBLY RH

   1.

      *a	Component without harness connected (Side Turn Signal Light Assembly RH)

      Apply battery voltage to the side turn signal light assembly RH and check that the light comes on.

      OK

      Condition	Specified Condition
      Battery positive (+) → Terminal 2 Battery negative (-) → Terminal 1	Side turn signal light RH comes on

      If the result is not as specified, replace the side turn signal light assembly RH.
