BACK-UP LIGHT ASSEMBLY REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE

  1. REMOVE REAR BUMPER COVER

    Click hereClick here

  2. REMOVE BACK-UP LIGHT ASSEMBLY LH

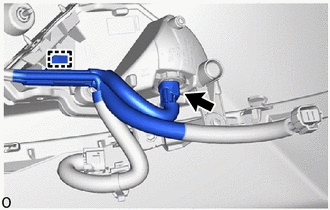

    1. E332635

      w/o Rear Fog Light:

      Disconnect the connector and detach the wire harness clamp.

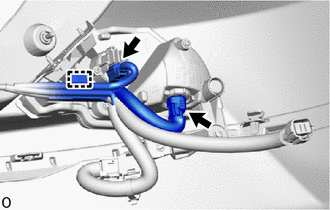

    2. E338906

      w/ Rear Fog Light:

      Disconnect the 2 connectors and detach the wire harness clamp.

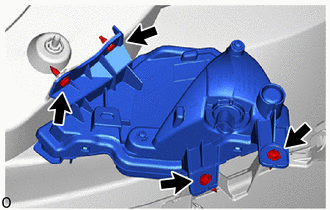

    3. E335218

      Remove the 2 screws and 2 clips and back up light assembly LH.
