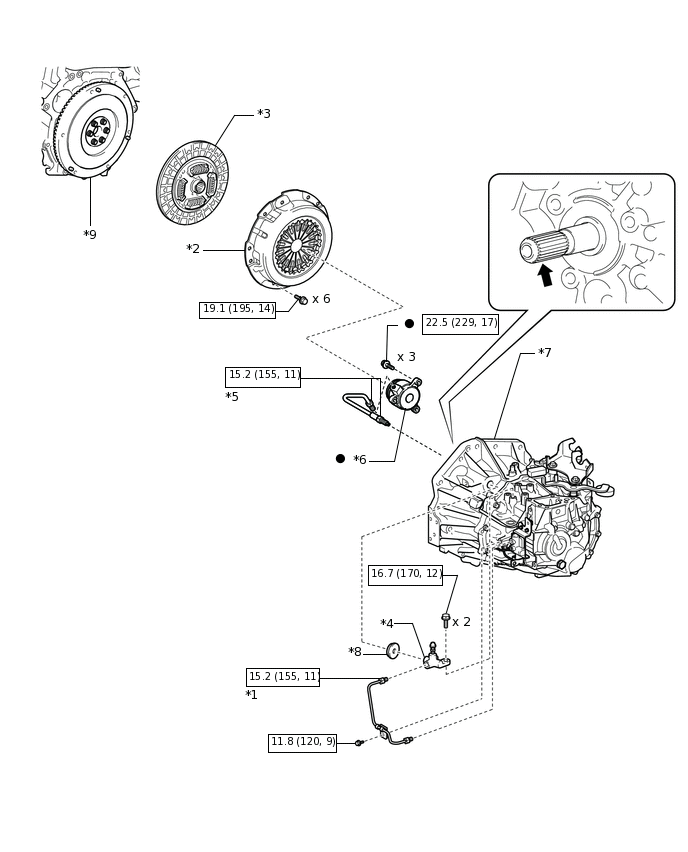

CLUTCH UNIT(for EC69) COMPONENTS
ILLUSTRATION
*1 |
ACCUMULATOR TO FLEXIBLE HOSE TUBE |
*2 |
CLUTCH COVER ASSEMBLY |
*3 |
CLUTCH DISC ASSEMBLY |
*4 |
CLUTCH RELEASE BLEEDER SUB-ASSEMBLY |
*5 |
CLUTCH RELEASE CYLINDER TO BLEEDER TUBE |
*6 |
CLUTCH RELEASE WITH BEARING CYLINDER ASSEMBLY |
*7 |
MANUAL TRANSAXLE ASSEMBLY |
*8 |
CLUTCH TUBE BOOT |
*9 |
FLYWHEEL SUB-ASSEMBLY |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
 |
Clutch spline grease |
- |
- |
