BRAKE CONTROL SYSTEM

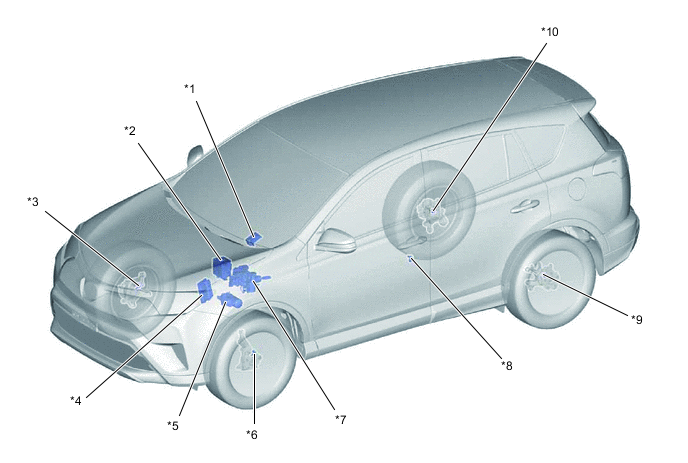

| *1 | Power Steering ECU Assembly | *2 | Brake Master Cylinder Reservoir Assembly
|
| *3 | Front Speed Sensor RH | *4 | ECM |
| *5 | Brake Booster Pump Assembly
|
*6 | Front Speed Sensor LH |
| *7 | Brake Booster with Master Cylinder Assembly
|
*8 | Front Door Courtesy Light Switch Assembly (Driver Side) |
| *9 | Rear Speed Sensor LH | *10 | Rear Speed Sensor RH |

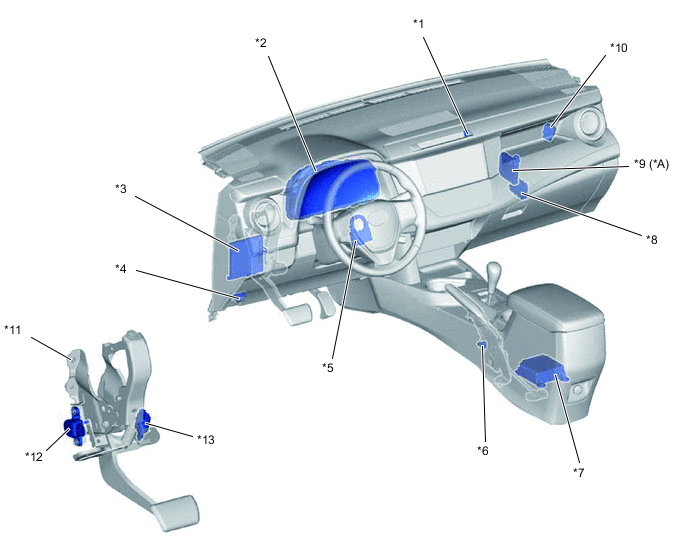

Figure 1. LHD Models
| *A | Models with Pre-crash safety System | - | - |
| *1 | Telltale Light Assembly
|
*2 | Combination Meter Assembly |
| *3 | Main Body ECU (Multiplex Network Body ECU) | *4 | DLC3 |
| *5 | Steering Sensor | *6 | Parking Brake Switch Assembly |
| *7 | Airbag ECU Assembly
|
*8 | Central Gateway ECU |
| *9 | Driving Support ECU Assembly | *10 | Stop Light Control ECU Assembly |
| *11 | Brake Pedal Support Assembly | *12 | Brake Pedal Stroke Sensor Assembly |
| *13 | Stop Light Switch Assembly | - | - |

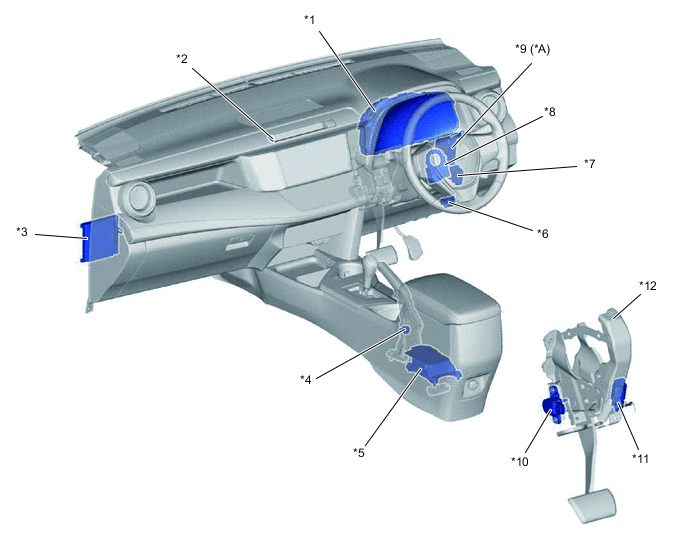

Figure 2. RHD Models
| *A | Models with Pre-crash safety System | - | - |
| *1 | Combination Meter Assembly | *2 | Telltale Light Assembly
|
| *3 | Main Body ECU (Multiplex Network Body ECU) | *4 | Parking Brake Switch Assembly |
| *5 | Airbag ECU Assembly
|
*6 | DLC3 |
| *7 | Central Gateway ECU | *8 | Steering Sensor |
| *9 | Driving Support ECU Assembly | *10 | Brake Pedal Stroke Sensor Assembly |
| *11 | Stop Light Switch Assembly | *12 | Brake Pedal Support Assembly |
