HOOD LOCK CONTROL CABLE ASSEMBLY(for LHD) REMOVAL

PROCEDURE

  1. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    Click here

  2. REMOVE HOOD TO FRONT FENDER SEAL RH

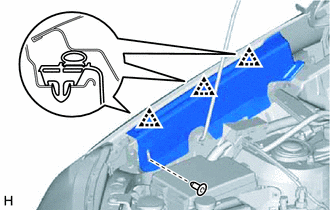

    1. B340664

      Remove the clip.

    2. Detach the 3 clips and remove the hood to front fender seal RH.

  3. REMOVE HOOD TO FRONT FENDER SEAL LH

    Tip:

    Use the same procedure described for the RH side.

  4. REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY

    Click here

  5. REMOVE FRONT DOOR SCUFF PLATE LH

    Click here

  6. REMOVE COWL SIDE TRIM BOARD LH

    Click hereClick here

  7. REMOVE FUSE BOX OPENING COVER

    Click hereClick here

  8. REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

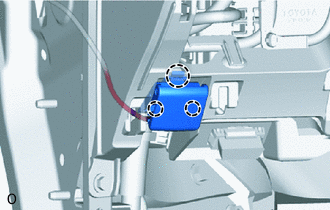

    1. B338116

      Detach the 3 claws.

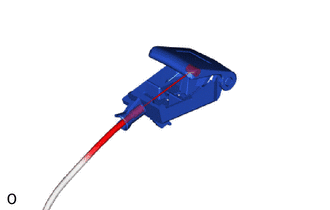

    2. B338115

      Disconnect the hood lock control cable assembly and remove the hood lock control lever sub-assembly.

  9. REMOVE HOOD LOCK ASSEMBLY

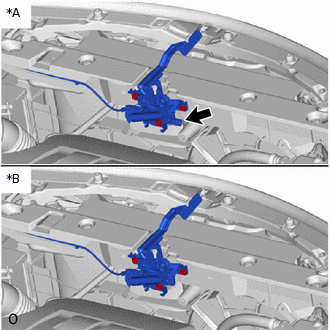

    1. B337420C02

      *A

      w/ Engine Hood Courtesy Switch

      *B

      w/o Engine Hood Courtesy Switch

      w/ Engine Hood Courtesy Switch:

      Disconnect the connector.

    2. Remove the 3 bolts.

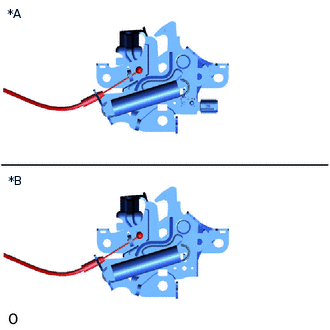

    3. B337421C02

      *A

      w/ Engine Hood Courtesy Switch

      *B

      w/o Engine Hood Courtesy Switch

      Disconnect the hood lock control cable assembly and remove the hood lock assembly.

  10. REMOVE HOOD LOCK CONTROL CABLE ASSEMBLY

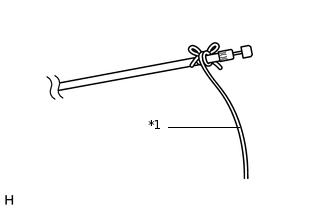

    1. B277362C14

      *1

      String

      Tie a string to the end of the hood lock control cable assembly as shown in the illustration.

      Tip:

      Use a length of string long enough to pass through the engine compartment.

    2. Detach each clamp, and then pull out the hood lock control cable assembly from the vehicle body.

    3. Untie the string from the hood lock control cable assembly.

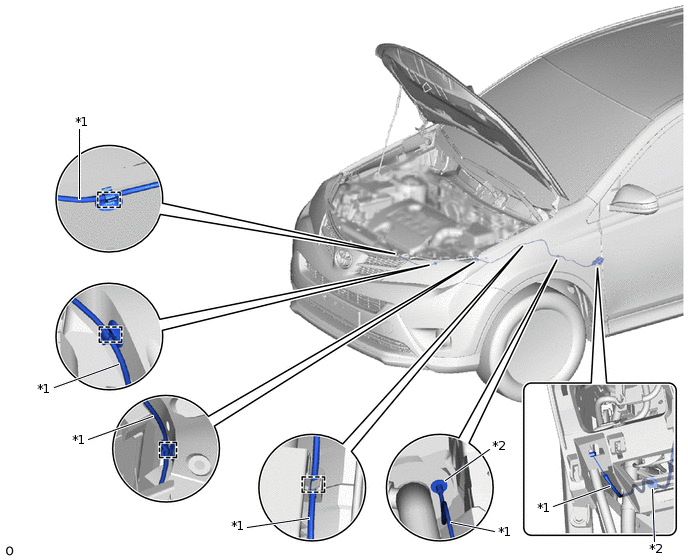

      B338124C06

      *1

      Hood Lock Control Cable

      *2

      Stopper
