DRIVE BELT INSTALLATION

PROCEDURE

  1. INSTALL FAN AND GENERATOR V BELT

    Tip:

    When reusing the fan and generator V belt, check the ribs and back of the fan and generator V belt for wear and cracks. If wear or a crack that reaches the core (at more than 1 point) is found, replace the fan and generator V belt.

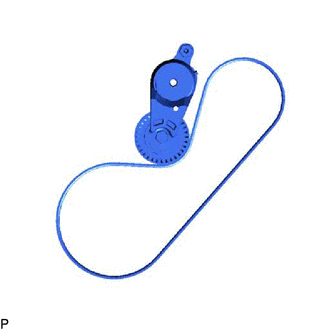

    1. A311181

      Set the fan and generator V belt onto each part as shown in the illustration, except the water pump pulley.

    2. Loosen the fan and generator V belt by turning the belt tensioner clockwise.

    3. Set the fan and generator V belt onto the water pump pulley.

      Note:

      Make sure that the belt is attached to each pulley. In particular, make sure that the belt is securely fitted into the grooves of the crankshaft pulley.

  2. INSTALL REAR ENGINE UNDER COVER RH

    1. Install the rear engine under cover RH with the 4 clips.
