TELEMATICS TRANSCEIVER REMOVAL

PROCEDURE

1. REMOVE REAR DOOR SCUFF PLATE RH

   Click here

2. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH

   Click here

3. REMOVE PACKAGE TRAY TRIM POCKET SUB-ASSEMBLY (w/ Partition Net)

   Click here

4. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

   Click here

5. REMOVE DECK BOARD ASSEMBLY (w/o Spare Tire, for Compact Spare Tire)

   Click here

6. REMOVE DECK BOARD ASSEMBLY (for Full Size Spare Tire)

   Click here

7. REMOVE DECK FLOOR BOX LH

   Click here

8. REMOVE REAR NO. 2 FLOOR BOARD

   Click here

9. REMOVE REAR FLOOR FINISH PLATE (w/o Spare Tire, for Compact Spare Tire)

   Click here

10. REMOVE REAR DECK TRIM COVER (for Full Size Spare Tire)

    Click here

11. REMOVE REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE (w/o Spare Tire, for Compact Spare Tire)

    Click here

12. REMOVE REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE (for Full Size Spare Tire)

    Click here

13. REMOVE REAR SEAT ASSEMBLY

    Click here

14. REMOVE DECK TRIM SERVICE HOLE COVER

    Click here

15. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH

    Click here

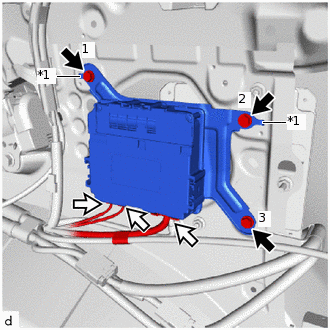

16. REMOVE TELEMATICS TRANSCEIVER

    1.

       *1	Guide
       	Bolt
       	Connector

       Remove the 3 bolts.

    2. Detach the 2 guides and telematics transceiver.

    3. Disconnect the connectors.

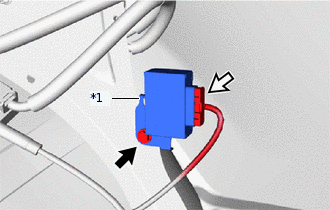

17. REMOVE ANTENNA DIVIDER

    1.

       *1	Guide
       	Bolt
       	Connector

       Disconnect the connector.

    2. Remove the bolt and antenna divider.
