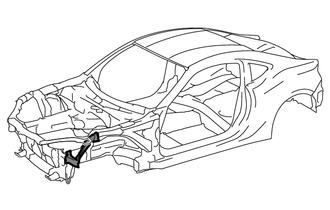

FRONT FENDER MOUNTING BRACKET ASSEMBLY REPLACEMENT



  1. REMOVAL

    Symbol meaning
    A004L9C Remove Weld Points
    A004L2L Remove Weld Points

      REMOVAL POINT

    1. *1: Bolts.

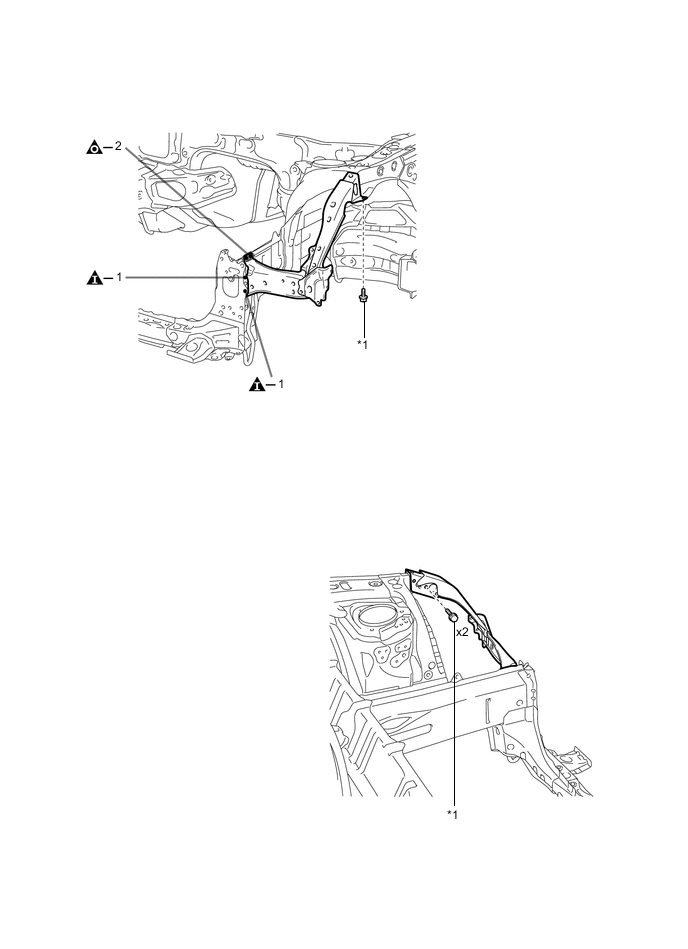

    A004L35E01

  2. INSTALLATION

    Symbol meaning
    A004L4Z Plug Weld
    A004L6I Plug Weld

      INSTALLATION POINT

    1. Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the finish.

    2. Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimension diagram)

    3. *1: Bolts.

    4. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.

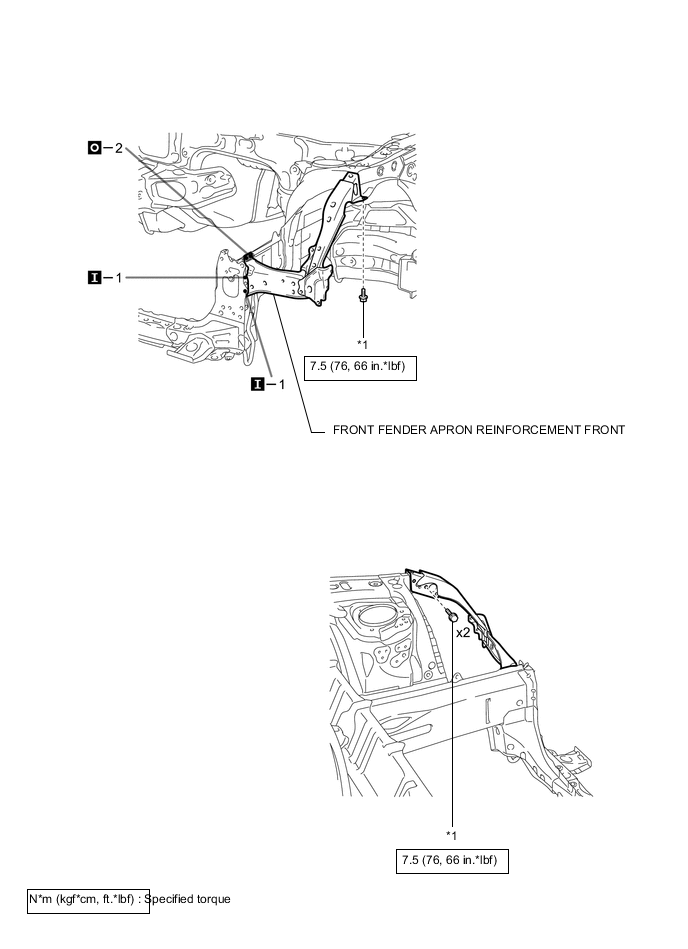

    A004L4EE01
