WIPER SWITCH ON-VEHICLE INSPECTION

PROCEDURE

  1. INSPECT WINDSHIELD WIPER SWITCH ASSEMBLY

    1. Check the front wiper intermittent operation.

      1. E257039C31

        *a

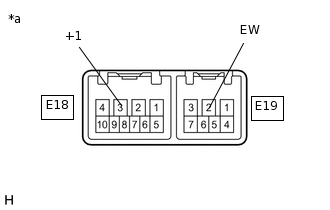

        Component with harness connected

        (Windshield Wiper Switch Assembly)

        Connect a voltmeter positive (+) lead to terminal E18-3 (+1) and a negative (-) lead to terminal E19-2 (EW).

      2. Turn the wiper switch to the INT position.

      3. Operate the intermittent wiper and check the voltage between terminals E18-3 (+1) and E19-2 (EW).

        OK

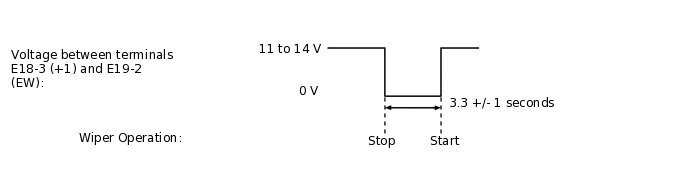

        Voltage changes as shown in the illustration.

        E294527E05

        If the result is not as specified, replace the windshield wiper switch assembly.

    2. Check the front washer operation.

      1. E257039C31

        *a

        Component with harness connected

        (Windshield Wiper Switch Assembly)

        Connect a voltmeter positive (+) lead to terminal E18-3 (+1) and a negative (-) lead to terminal E19-2 (EW).

      2. Turn the ignition switch to ON.

      3. Turn the washer switch on and off, and check the voltage between terminals E18-3 (+1) and E19-2 (EW).

        OK

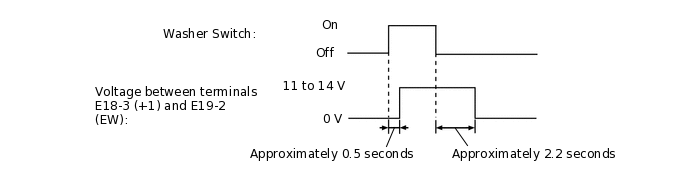

        Voltage changes as shown in the following illustration.

        E226602E46

        If the result is not as specified, replace the windshield wiper switch assembly.
