FRONT CRANKSHAFT OIL SEAL INSTALLATION

PROCEDURE

  1. INSTALL TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL

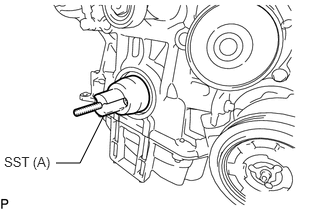

    1. A315450E01

      Using an 8 mm hexagon wrench, install SST (A) to the crankshaft.

      SST

      PZ4TB-04961-27

    2. Set a new timing gear case or timing chain case oil seal to the cylinder block.

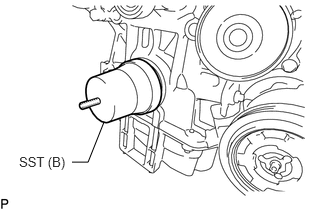

    3. A315451E01

      Install SST (B) to SST (A).

      SST

      PZ4TB-04961-27

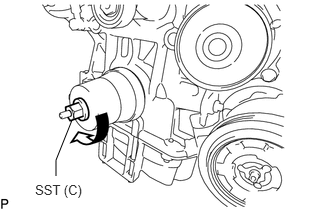

    4. A315452E01

      Install and tighten SST (C) to install the timing gear case or timing chain case oil seal to the crankshaft.

      SST

      PZ4TB-04961-27

      Tip:

      Tighten SST (C) until SST (B) contacts the cylinder block.

    5. Remove SST (C), SST (B) and SST (A).

  2. INSTALL CRANKSHAFT PULLEY

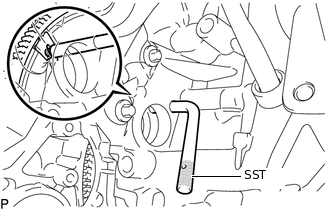

    1. A315447E01

      Using SST, hold the flywheel sub-assembly.

      SST

      PZ4TB-04951-26

    2. Install the crankshaft pulley to the crankshaft with 4 new bolts.

      Tip:

      The crankshaft pulley bolts are tightened in 2 progressive steps.

    3. Step 1:

      1. Using an E10 "TORX" socket wrench, tighten the 4 bolts.

        40 N*m

        408 kgf*cm

        30 ft.*lbf

    4. Step 2:

      1. Mark the RH side of each crankshaft pulley bolt with paint.

      2. Tighten the bolts 120°.

      3. Check that the paint marks are now at a 120° angle to the RH side.

    5. Remove SST.

    6. Install the plug to the cylinder block.

  3. INSTALL V-RIBBED BELT
