UPPER INSTRUMENT PANEL COMPONENTS
ILLUSTRATION
*A |
w/o Spare Tire, for Compact Spare Tire |
*B |
for Full Size Spare Tire |
*1 |
DECK BOARD ASSEMBLY |
*2 |
BATTERY SERVICE COVER |
*3 |
NEGATIVE AUXILIARY BATTERY TERMINAL |
- |
- |

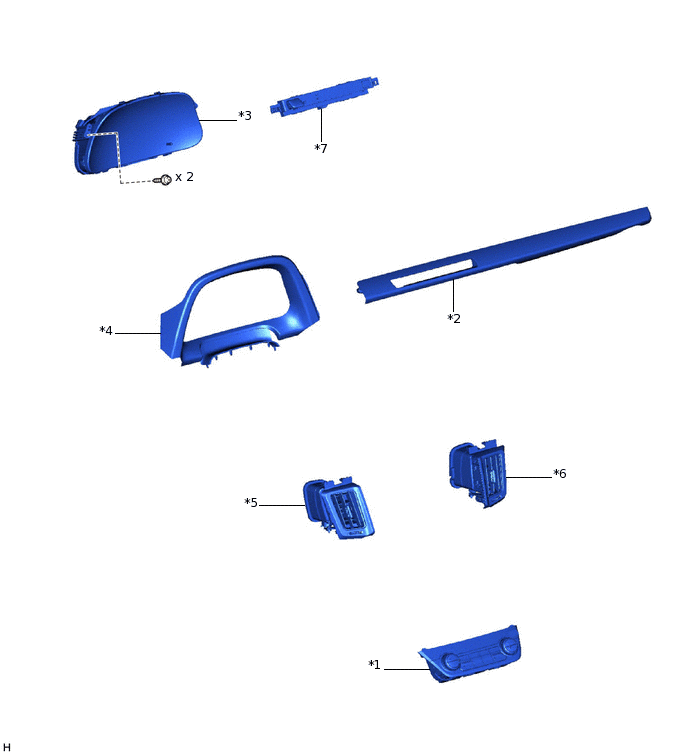

ILLUSTRATION
*1 |
AIR CONDITIONING CONTROL ASSEMBLY |
*2 |
CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL |
*3 |
COMBINATION METER ASSEMBLY |
*4 |
NO. 1 INSTRUMENT CLUSTER FINISH PANEL |
*5 |
NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY |
*6 |
NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY |
*7 |
TELLTALE LIGHT ASSEMBLY |
- |
- |

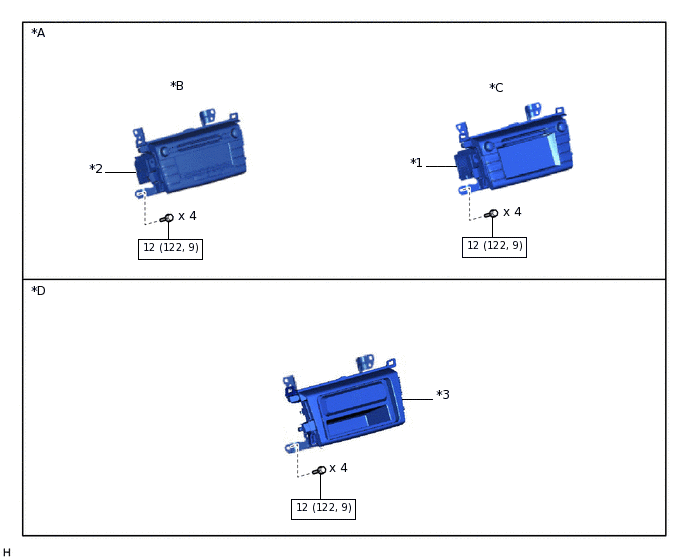

ILLUSTRATION
*A |
w/ Audio |
*B |
for Radio Receiver Type |
*C |
for Radio and Display Type |
*D |
w/o Audio |
*1 |
RADIO AND DISPLAY RECEIVER ASSEMBLY |
*2 |
RADIO RECEIVER ASSEMBLY |
*3 |
STEREO OPENING COVER |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

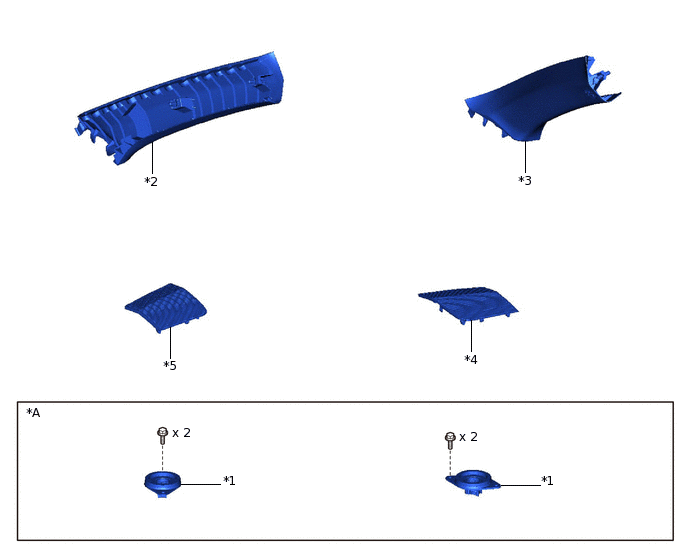

ILLUSTRATION
*A |
w/ Speaker |
- |
- |
*1 |
FRONT NO. 2 SPEAKER ASSEMBLY |
*2 |
FRONT PILLAR GARNISH LH |
*3 |
FRONT PILLAR GARNISH RH |
*4 |
NO. 1 SPEAKER HOLE COVER |
*5 |
NO. 2 SPEAKER HOLE COVER |
- |
- |

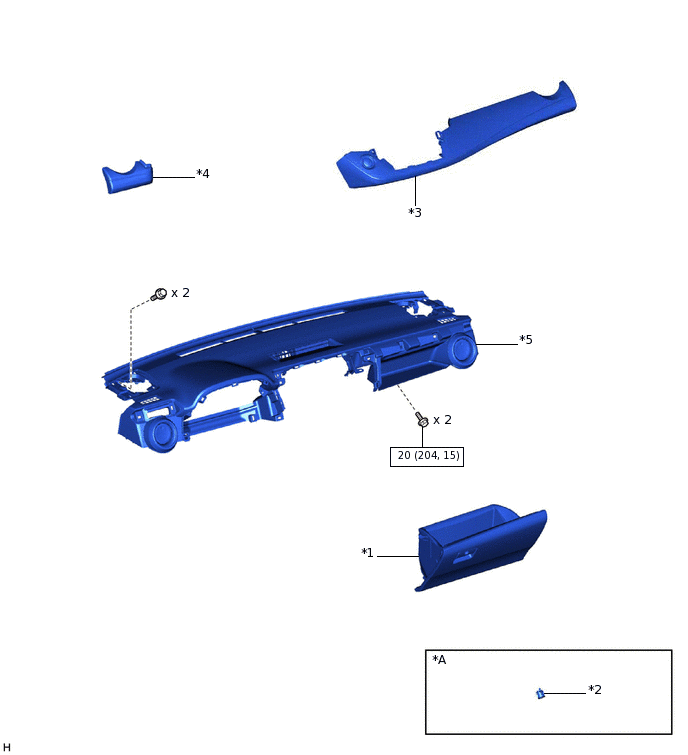

ILLUSTRATION
*A |
w/ Lock Cylinder |
- |
- |
*1 |
GLOVE COMPARTMENT DOOR ASSEMBLY |
*2 |
GLOVE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY |
*3 |
NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY |
*4 |
UPPER INSTRUMENT CLUSTER FINISH PANEL |
*5 |
UPPER INSTRUMENT PANEL |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

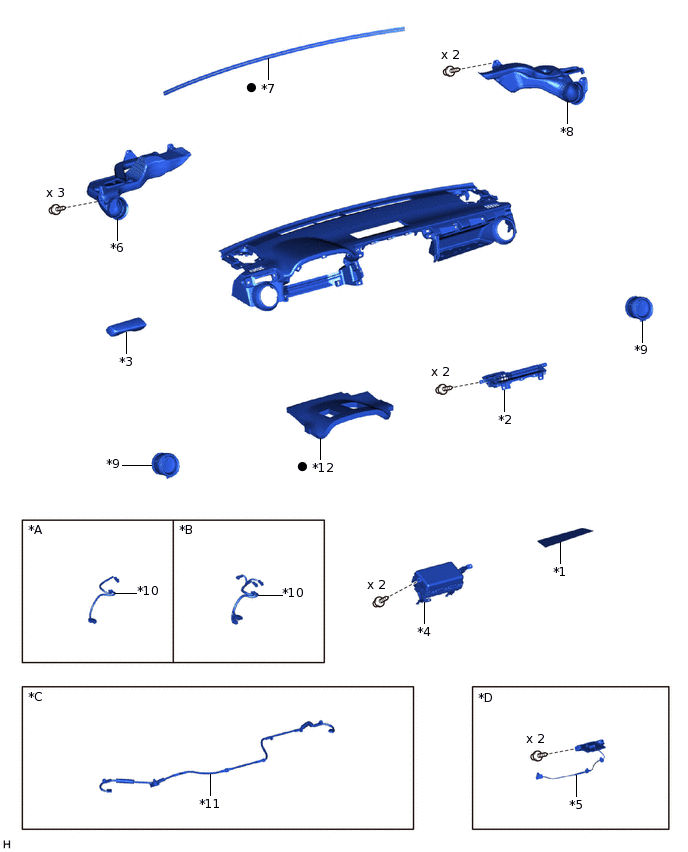

ILLUSTRATION
*A |
for Single Type |
*B |
for Dual Type |
*C |
w/ Speaker |
*D |
w/ Navigation Antenna |
*1 |
BOX BOTTOM MAT |
*2 |
CENTER INSTRUMENT PANEL REGISTER CONNECTOR |
*3 |
INSTRUMENT CLUSTER FINISH PANEL GARNISH |
*4 |
INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY |
*5 |
NAVIGATION ANTENNA ASSEMBLY |
*6 |
NO. 1 HEATER TO REGISTER DUCT SUB-ASSEMBLY |
*7 |
NO. 1 INSTRUMENT PANEL CUSHION |
*8 |
NO. 2 HEATER TO REGISTER DUCT SUB-ASSEMBLY |
*9 |
NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY |
*10 |
NO. 2 INSTRUMENT PANEL WIRE |
*11 |
NO. 2 INSTRUMENT PANEL WIRE |
*12 |
NO. 4 INSTRUMENT PANEL CUSHION |
● |
Non-reusable part |
- |
- |
