CHILD RESTRAINT SEAT TETHER ANCHOR INSTALLATION

PROCEDURE

1. INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET




   1.

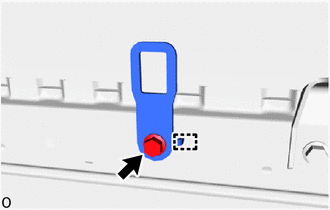

      Attach the guide and install the child restraint seat tether anchor bracket with the bolt.

      Torque:

      42 N*m  { 428 kgf*cm, 31 ft.*lbf }

2. INSTALL UPPER BACK PANEL GARNISH

   Click here

3. INSTALL REAR SEATBACK HOLDER

   Click here

4. INSTALL TETHER ANCHOR BRACKET SUB-ASSEMBLY

   Click here
