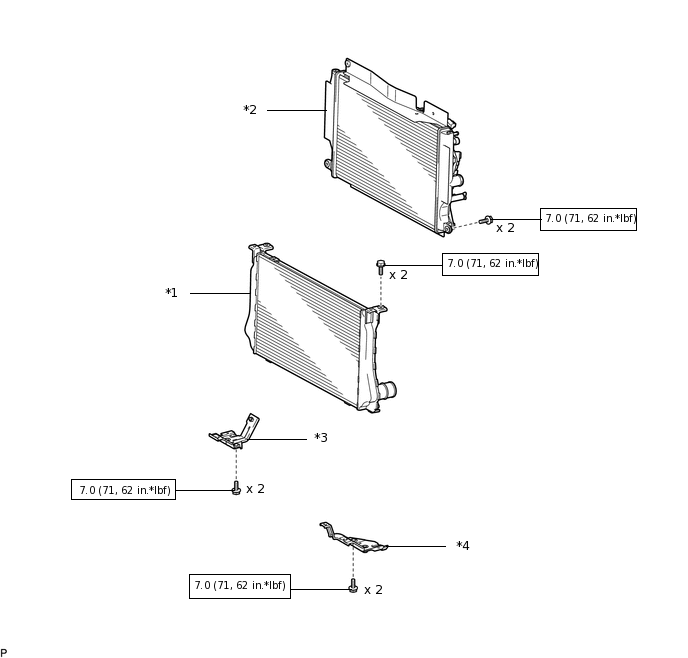

INTERCOOLER COMPONENTS

ILLUSTRATION

A347250C01

*1

INTERCOOLER ASSEMBLY

*2

RADIATOR ASSEMBLY

*3

LOWER RADIATOR SUPPORT SUB-ASSEMBLY RH

*4

LOWER RADIATOR SUPPORT SUB-ASSEMBLY LH
V100146

N*m (kgf*cm, ft.*lbf): Specified torque

-

-
