WIPER SWITCH REMOVAL

PROCEDURE


  1. CHANGE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM SETTINGS (for Power Tilt and Power Telescopic Steering Column)

    Click here

  2. REMOVE LOWER STEERING COLUMN COVER SUB-ASSEMBLY

    Note

    Removing the lower steering column cover sub-assembly in the incorrect order will cause the parts to break.


    1. for Manual Tilt and Manual Telescopic Steering Column:


      1. Release the tilt and telescopic lever and fully extend and lower the steering column assembly.

      2. Lock the tilt and telescopic lever.

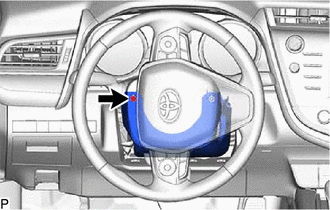

    2. B0086O1

      Turn the steering wheel assembly to the left and remove the screw.

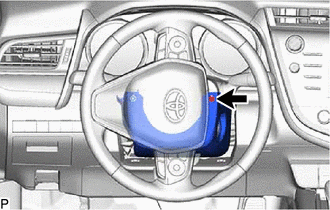

    3. B0085YK

      Turn the steering wheel assembly to the right and remove the screw.

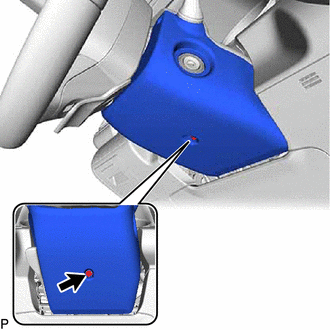

    4. B0083PH

      Remove the screw.

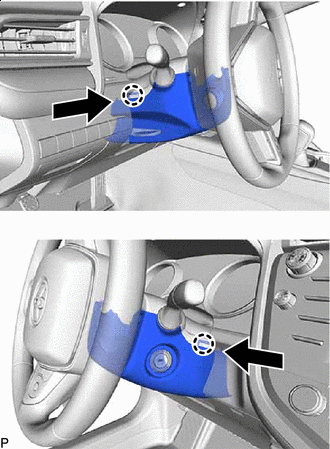

    5. B00875ZC01
      B00888T Push

      Push the lower steering column cover sub-assembly and disengage the 2 claws as shown in the illustration.

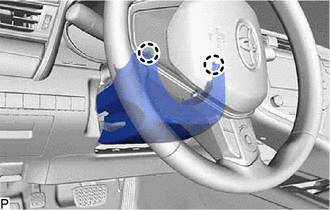

    6. B0085JT

      Disengage the 2 claws to remove the lower steering column cover sub-assembly.

  3. REMOVE UPPER STEERING COLUMN COVER

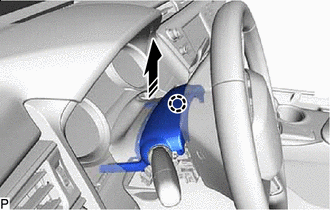

    1. B0088CEC01
      B00847Z Separate in this Direction

      Disengage the claw to separate the upper steering column cover as shown in the illustration.

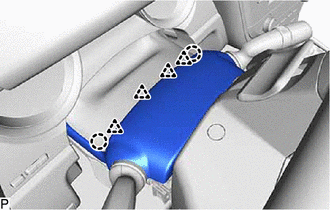

    2. B0085QG

      Disengage the 2 claws and 4 clips to remove the upper steering column cover from the instrument cluster finish panel assembly.

  4. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY

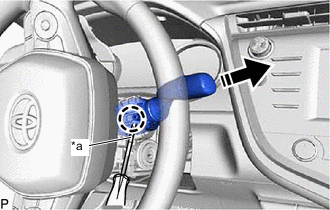

    1. B00851XC01
      *a Protective Tape
      B00847Z Remove in this Direction

      Using a screwdriver, disengage the claw and remove the windshield wiper switch assembly as shown in the illustration.

      Note

      If the claw is pulled with excessive force, it may break.

      Tech Tips

      Tape the screwdriver tip before use.
