SEAT POSITION SENSOR INSTALLATION

INSTALL SEAT POSITION AIRBAG SENSOR

*1	Pin

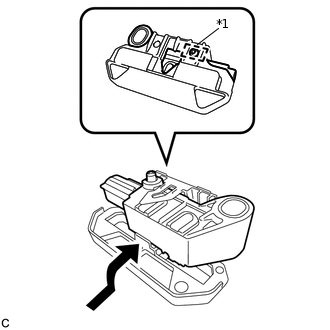

Install the seat position airbag sensor to the seat slide position sensor protector with the pin as shown in the illustration.

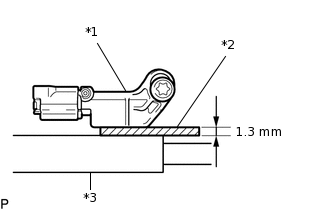

Using a 1.3 mm (0.0512 in.) feeler gauge, temporarily install the seat position airbag sensor.

Note:

If the seat position airbag sensor has been dropped, or there are any cracks, dents or other defects in the case or connector, replace the seat position airbag sensor with a new one.
When installing the seat position airbag sensor, be careful that the SRS wiring does not interfere with or is pinched between other parts.

Tip:

Be sure that the clearance between the seat position airbag sensor and seat rail is between 0.6 mm (0.0236 in.) and 2.0 mm (0.0787 in.).

Using a T30 "TORX" socket wrench, tighten the "TORX" screw to install the seat position airbag sensor.

8.0 N*m

82 kgf*cm

71 in.*lbf
Make sure that the clearance between the seat position airbag sensor and seat rail is between 0.6 mm (0.0236 in.) and 2.0 mm (0.0787 in.).
Install the wire harness to the seat slide position sensor protector.
Connect the connector.
Check that there is no looseness in the installation parts of the seat position airbag sensor.

INSTALL FRONT SEAT ASSEMBLY LH

CONNECT CABLE TO AUXILIARY BATTERY NEGATIVE TERMINAL

Note:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

INSTALL BATTERY SERVICE COVER

INSTALL DECK BOARD ASSEMBLY

PERFORM DIAGNOSTIC SYSTEM CHECK

CHECK SRS WARNING LIGHT
