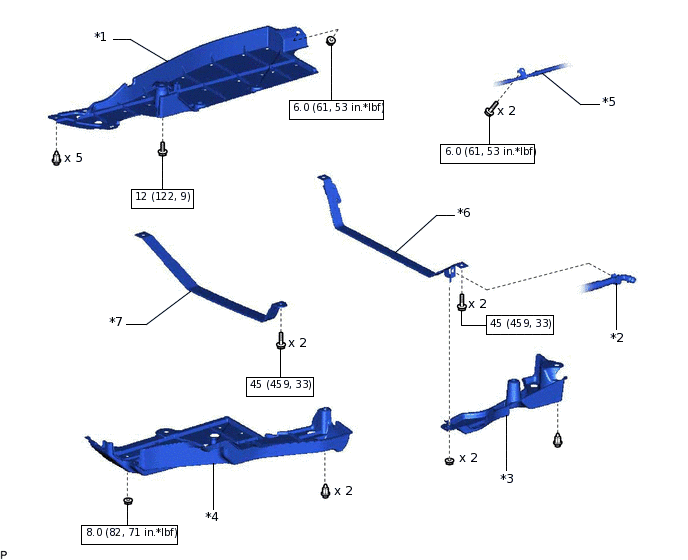

FUEL TANK(w/ Canister Pump Module) COMPONENTS

*1	FRONT FLOOR COVER	*2	FUEL TANK VENT HOSE SUB-ASSEMBLY
*3	NO. 1 FLOOR UNDER COVER	*4	NO. 1 FUEL TANK PROTECTOR
*5	NO. 2 PARKING BRAKE CABLE ASSEMBLY	*6	NO. 2 FUEL TANK BAND
*7	NO. 1 FUEL TANK BAND	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

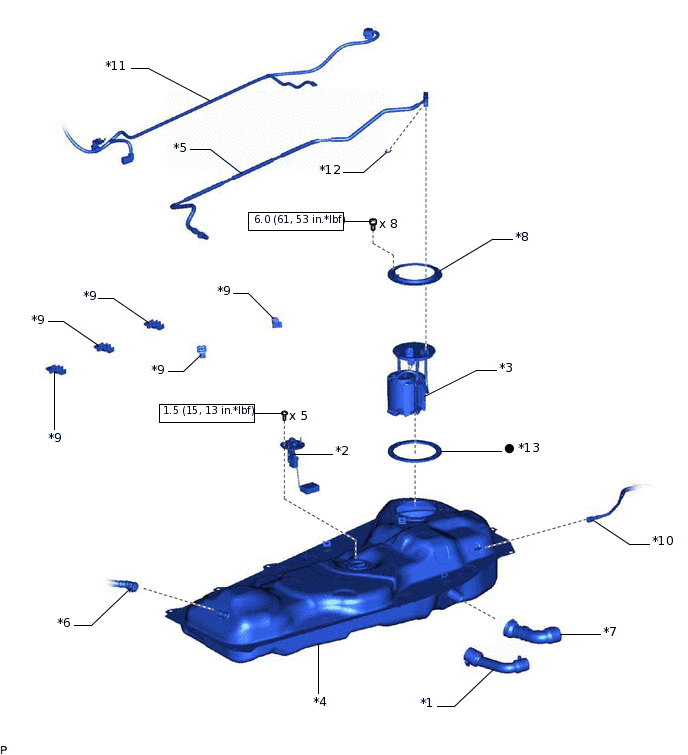

*1	FUEL HOSE PROTECTOR	*2	FUEL SENDER GAUGE ASSEMBLY
*3	FUEL SUCTION TUBE ASSEMBLY	*4	FUEL TANK ASSEMBLY
*5	FUEL TANK MAIN TUBE SUB-ASSEMBLY	*6	FUEL TANK TO CANISTER TUBE SUB-ASSEMBLY
*7	FUEL TANK TO FILLER PIPE HOSE	*8	FUEL TANK VENT TUBE SET PLATE
*9	NO. 4 FUEL TUBE CLAMP	*10	FUEL TANK BREATHER TUBE SUB-ASSEMBLY
*11	WIRE HARNESS	*12	TUBE JOINT CLIP
*13	GASKET	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	●	Non-reusable part

*1

FUEL HOSE PROTECTOR

*2

FUEL SENDER GAUGE ASSEMBLY

*3

FUEL SUCTION TUBE ASSEMBLY

*4

FUEL TANK ASSEMBLY

*5

FUEL TANK MAIN TUBE SUB-ASSEMBLY

*6

FUEL TANK TO CANISTER TUBE SUB-ASSEMBLY

*7

FUEL TANK TO FILLER PIPE HOSE

*8

FUEL TANK VENT TUBE SET PLATE

*9

NO. 4 FUEL TUBE CLAMP

*10

FUEL TANK BREATHER TUBE SUB-ASSEMBLY

*11

WIRE HARNESS

*12

TUBE JOINT CLIP

*13

GASKET

-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part
