RADIATOR SIDE SUPPORT ASSEMBLY REPLACEMENT

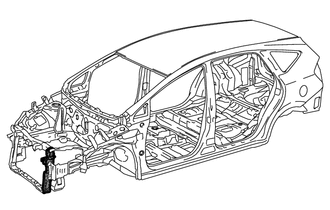

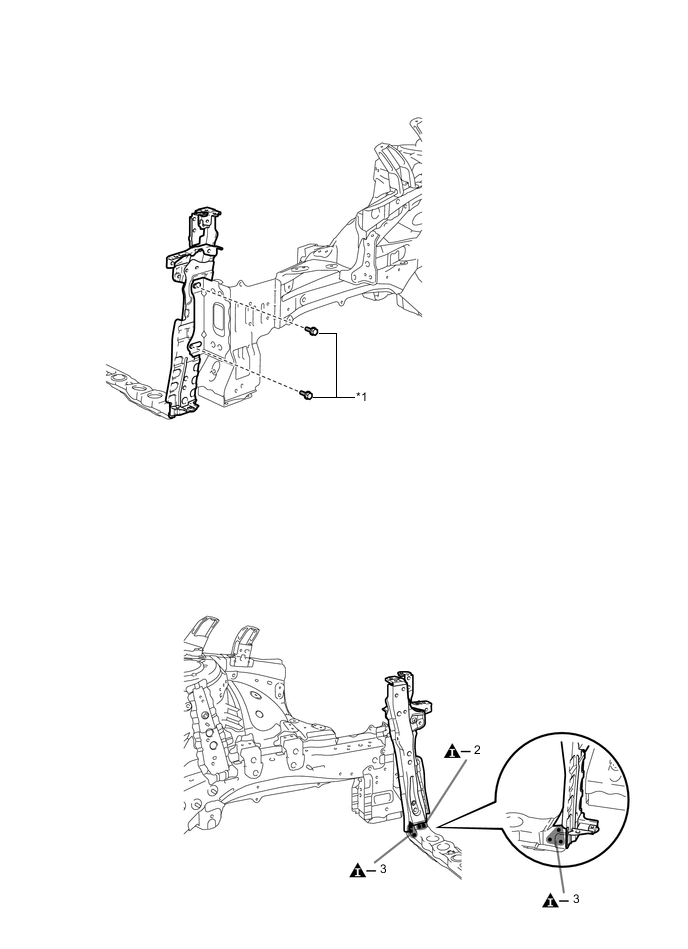

  1. REMOVAL

    Symbol meaning
    A0050JA Remove Weld Points

      REMOVAL POINT

    1. *1: Bolts.

    A0050KZE01

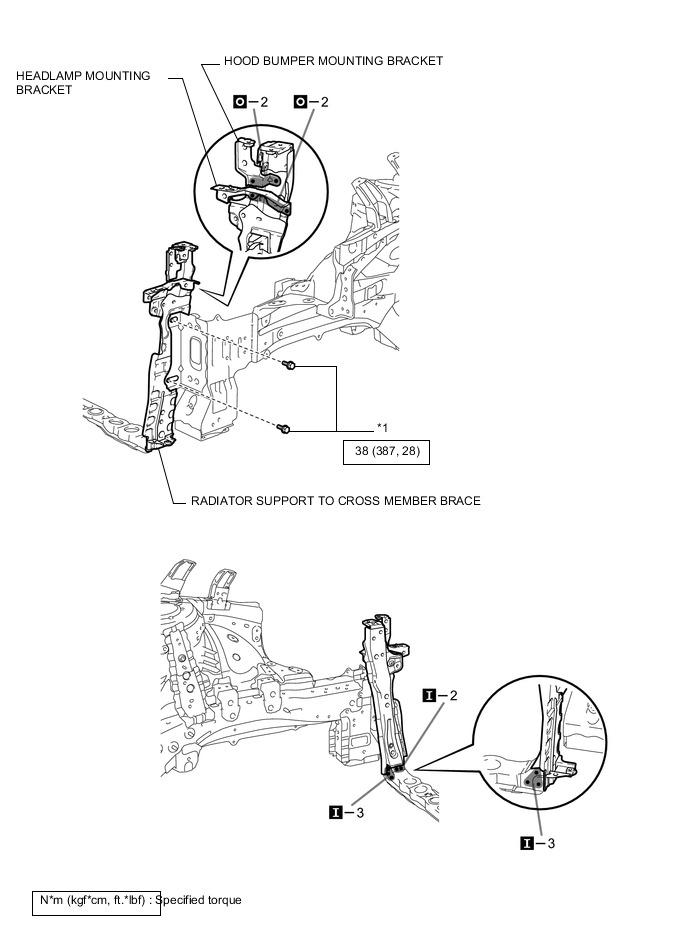

  2. INSTALLATION

    Symbol meaning
    A0050CS Plug Weld
    A0050HG Plug Weld

      INSTALLATION POINT

    1. Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the finish.

    2. Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimensions)

    3. *1: Bolts.

    4. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.

    A0050D4E01
