MUDGUARD(for Rear Side) INSTALLATION

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE


  1. INSTALL REAR QUARTER PANEL MUDGUARD LH


    1. A01LEHQC01
      *A for Short Type
      *B for Long Type

      for Standard Body:


      1. Install the rear quarter panel mudguard LH with the 4 screws.

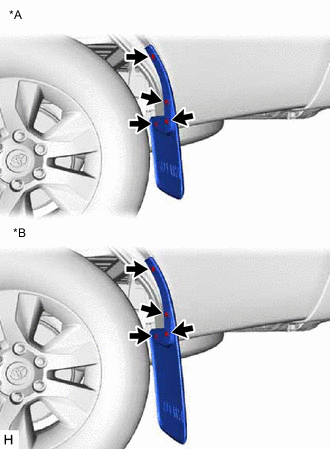

    2. A01LF2XC02
      *A for Short Type
      *B for Long Type

      for Wide Body:


      1. Install the rear quarter panel mudguard LH with the 4 screws.
