WIPER SWITCH INSTALLATION

PROCEDURE


  1. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY

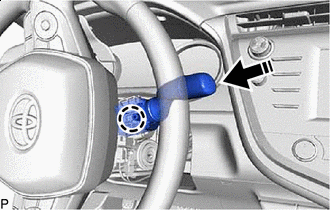

    1. B0084ZYC01
      B00847Z Install in this Direction

      Engage the claw as shown in the illustration to install the windshield wiper switch assembly.

  2. INSTALL UPPER STEERING COLUMN COVER

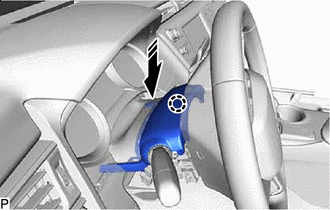

    1. B0085BUC01
      B00847Z Install in this Direction

      Engage the claw to install the upper steering column cover as shown in the illustration.

    2. Engage the 4 clips and 2 claws to connect the instrument cluster finish panel assembly.

  3. INSTALL LOWER STEERING COLUMN COVER SUB-ASSEMBLY

    Note

    If the lower steering column cover sub-assembly is installed in the incorrect order, the parts may break.


    1. Engage the 2 claws.

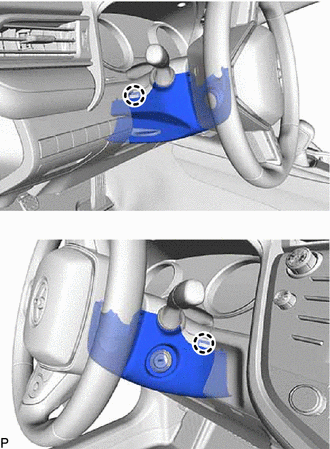

    2. B0083H0

      Engage the 2 claws.

    3. Install the screw.

    4. Turn the steering wheel assembly to the left and install the screw.

    5. Turn the steering wheel assembly to the right and install the lower steering column cover sub-assembly with the screw.

  4. CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM (for Power Tilt and Power Telescopic Steering Column)

    Click here
