REAR WHEEL HOUSE PLATE REMOVAL

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE


  1. REMOVE REAR WHEEL FRONT HOUSE PLATE LH

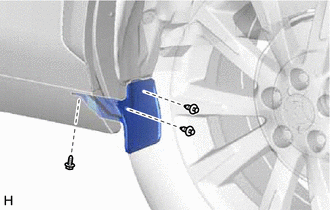

    A01HJ2T

    1. Remove the 2 clips.

    2. Remove the screw and rear wheel house front plate LH.
