METER / GAUGE SYSTEM

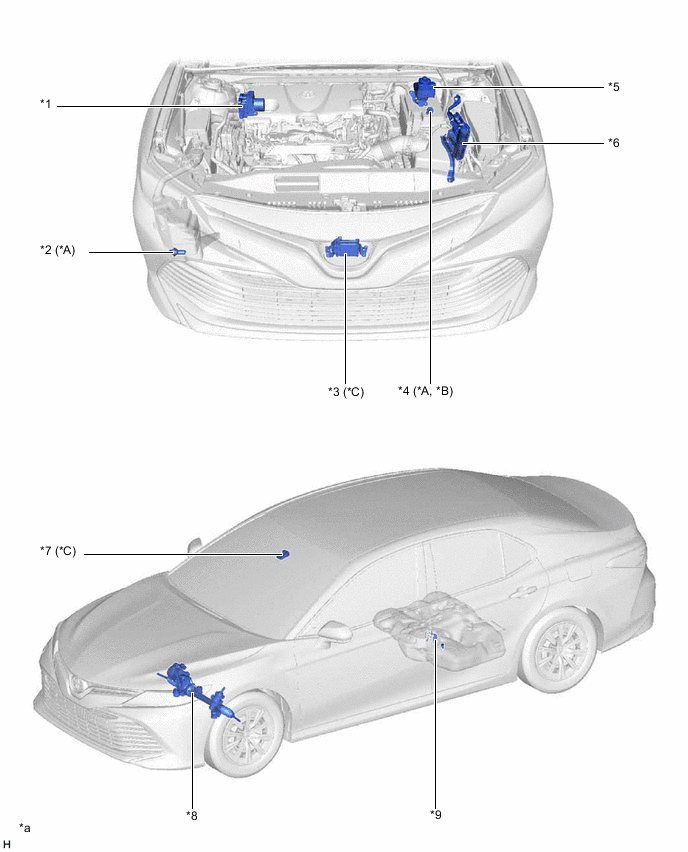

Figure 1. LHD Models
| *A | Models with A25A-FKS Engine | *B | Models with 2GR-FKS Engine |
| *C | Models with Toyota Safety Sense | - | - |
| *1 | BRAKE ACTUATOR ASSEMBLY
|
*2 | WASHER FLUID LEVEL SWITCH (LEVEL WARNING SWITCH ASSEMBLY) |
| *3 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *4 | VACUUM WARNING SWITCH ASSEMBLY |
| *5 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY
|
*6 | ECM |
| *7 | FORWARD RECOGNITION CAMERA | *8 | RACK AND PINION POWER STEERING GEAR ASSEMBLY
|
| *9 | FUEL SENDER GAUGE ASSEMBLY | - | - |
| *a | The illustrations shown are examples only. | - | - |

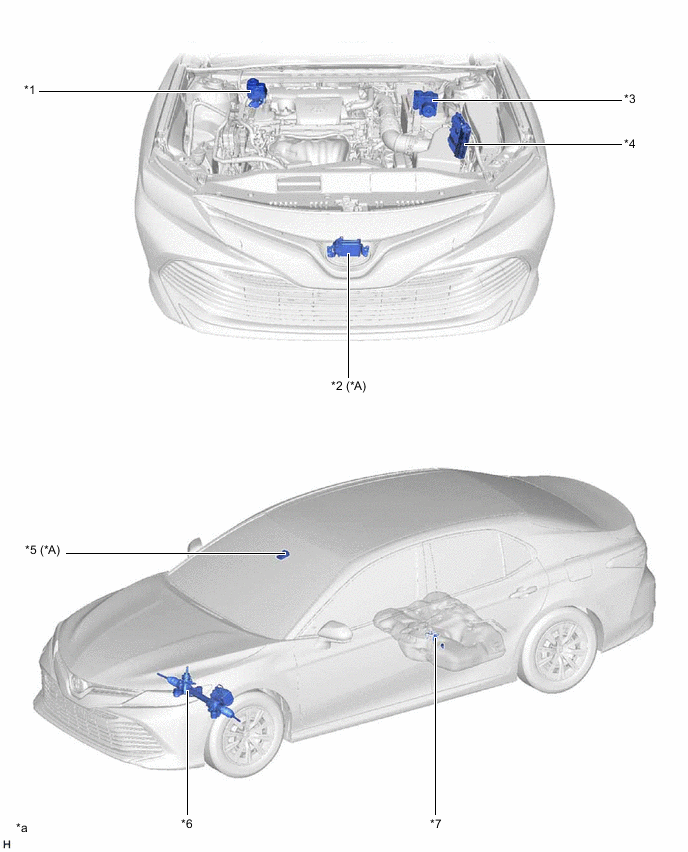

Figure 2. RHD Models
| *A | Models with Toyota Safety Sense | - | - |
| *1 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY
|
*2 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
| *3 | BRAKE ACTUATOR ASSEMBLY
|
*4 | ECM |
| *5 | FORWARD RECOGNITION CAMERA | *6 | RACK AND PINION POWER STEERING GEAR ASSEMBLY
|
| *7 | FUEL SENDER GAUGE ASSEMBLY | - | - |
| *a | The illustrations shown are examples only. | - | - |
| *A | Models with Tire Pressure Warning System | *B | Models with Rear Sunshade System |
| *C | Models with Blind Spot Monitor System | - | - |
| *1 | TIRE PRESSURE WARNING ECU AND RECEIVER | *2 | REAR WINDOW SHADE ASSEMBLY |
| *3 | BLIND SPOT MONITOR SENSOR RH | - | - |
| *a | The illustrations shown are examples only. | - | - |

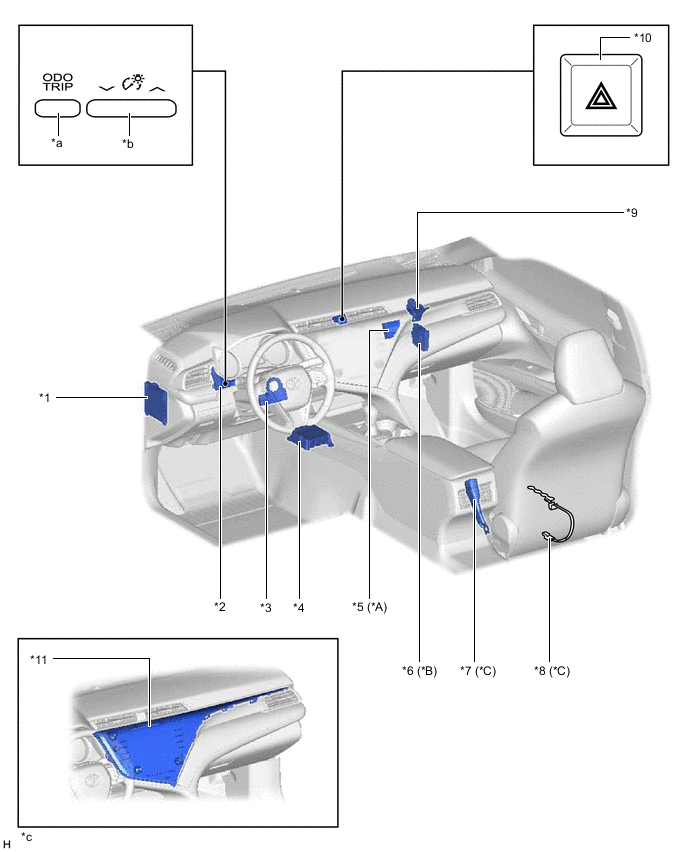

Figure 3. LHD Models
| *A | Models with Rear Seat Belt Warning Function | *B | Models with TOYOTA Parking Assist-sensor System |
| *C | Except Destination Package for South Korea | - | - |
| *1 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *2 | TRIP SWITCH |
| *3 | STEERING SENSOR | *4 | AIRBAG SENSOR ASSEMBLY |
| *5 | TELLTALE LIGHT ASSEMBLY
|
*6 | CLEARANCE WARNING ECU ASSEMBLY |
| *7 | FRONT SEAT INNER BELT ASSEMBLY RH | *8 | OCCUPANT DETECTION SENSOR |
| *9 | NETWORK GATEWAY ECU | *10 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY |
| *11 | RADIO AND DISPLAY RECEIVER ASSEMBLY | - | - |
| *a | ODO/TRIP Switch | *b | Rheostat Switch |
| *c | The illustrations shown are examples only. | - | - |

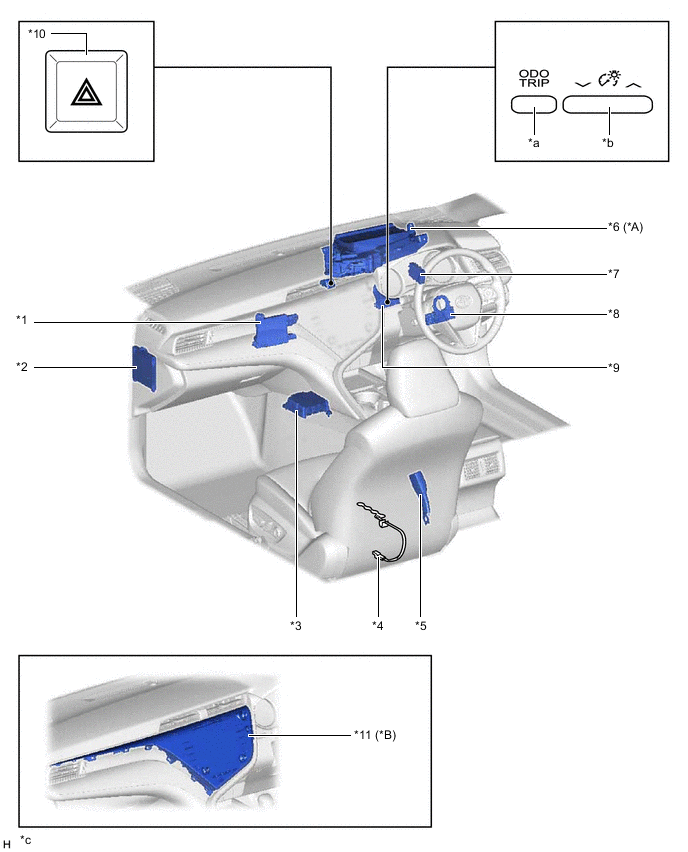

Figure 4. RHD Models
| *A | Models with Headup Display | *B | Models with Audio System |
| *1 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 | AIRBAG SENSOR ASSEMBLY | *4 | OCCUPANT DETECTION SENSOR |
| *5 | FRONT SEAT INNER BELT ASSEMBLY LH | *6 | METER MIRROR SUB-ASSEMBLY |
| *7 | NETWORK GATEWAY ECU | *8 | STEERING SENSOR |
| *9 | TRIP SWITCH | *10 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY |
| *11 | RADIO AND DISPLAY RECEIVER ASSEMBLY | - | - |
| *a | ODO/TRIP Switch | *b | Rheostat Switch |
| *c | The illustrations shown are examples only. | - | - |
Figure 5. LHD Models
| *A | Models with Smart Entry and Start System | - | - |
| *1 | SPIRAL CABLE SUB-ASSEMBLY | *2 | COMBINATION METER ASSEMBLY |
| *3 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *4 | STEERING PAD SWITCH ASSEMBLY |
| *5 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | - | - |
| *a | Refer to Service Bulletin for the installation position of the part. | *b | The illustrations shown are examples only. |

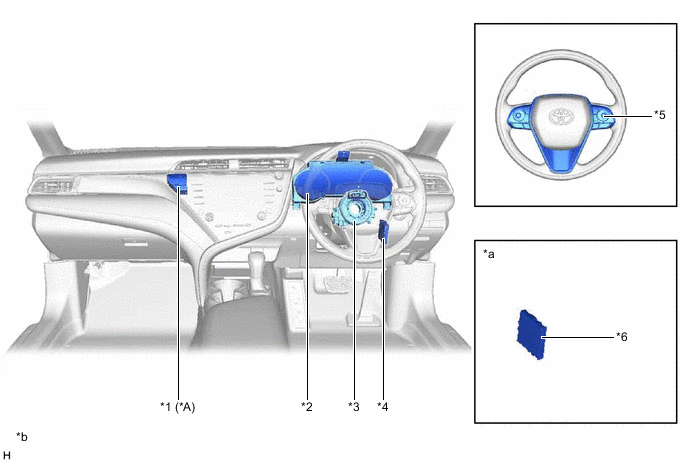

Figure 6. RHD Models
| *A | Models with Rear Seat Belt Warning Function | - | - |
| *1 | TELLTALE LIGHT ASSEMBLY
|
*2 | COMBINATION METER ASSEMBLY |
| *3 | SPIRAL CABLE SUB-ASSEMBLY | *4 | CLEARANCE WARNING ECU ASSEMBLY |
| *5 | STEERING PAD SWITCH ASSEMBLY | *6 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *a | Refer to Service Bulletin for the installation position of the part. | *b | The illustrations shown are examples only. |
Figure 7. Models with Rear Seat Belt Warning Function
| *1 | REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH | *2 | REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH |
| *a | The illustrations shown are examples only. | - | - |
| *A | Models with A25A-FKS Engine | *B | Models with 2AR-FE Engine |
| *C | Models with 2GR-FKS Engine | - | - |
| *1 | ENGINE OIL LEVEL SENSOR | *2 | ENGINE OIL PRESSURE SWITCH ASSEMBLY |
