REAR SEAT CUSHION HEATER(for 60/40 Split Seat Type RH Side) INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the seat frame may injure your hands.

PROCEDURE


  1. INSTALL REAR SEAT CUSHION HEATER (SEPARATE TYPE REAR SEAT CUSHION COVER) (w/o Rear No. 2 Seat)

    Tech Tips

    When installing a rear seat cushion heater (separate type rear seat cushion cover), refer to Precaution in order to prevent wrinkles from forming.

    Click here

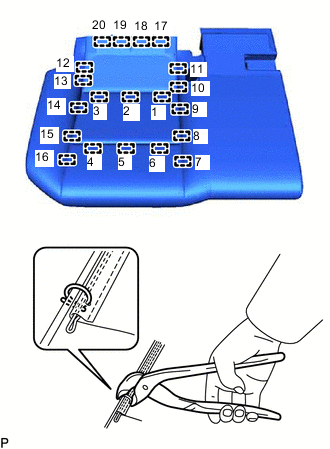

    1. B005QBPN01

      Using hog ring pliers, install 20 new hog rings in the order shown in the illustration.

      Note


      • Be careful not to damage the rear seat cushion heater (separate type rear seat cushion cover).

      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the rear seat cushion heater (separate type rear seat cushion cover).

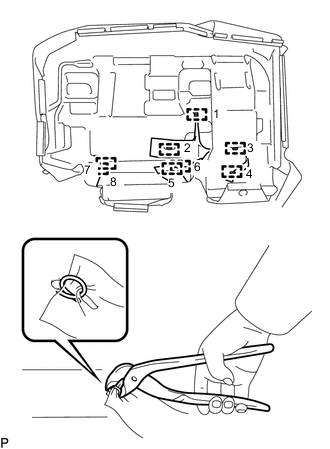

    2. B005P6XN01

      Using hog ring pliers, install the rear seat cushion heater (separate type rear seat cushion cover) to the separate type rear seat cushion pad with 8 new hog rings in the order shown in the illustration.

      Note


      • Be careful not to damage the rear seat cushion heater (separate type rear seat cushion cover).

      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the rear seat cushion heater (separate type rear seat cushion cover).

  2. INSTALL SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD (w/o Rear No. 2 Seat)

    Click here

  3. CONNECT SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD (w/o Rear No. 2 Seat)

    Click here

  4. INSTALL NO. 1 RECLINING ADJUSTER RELEASE HANDLE RH (w/o Rear No. 2 Seat)

    for Manual Seat:

    Click here

  5. INSTALL REAR SEAT COVER CAP RH (w/o Rear No. 2 Seat)

    for Manual Seat:

    Click here

  6. INSTALL POWER SEAT SWITCH ASSEMBLY (w/o Rear No. 2 Seat)

    for Power Seat:

    Click here

  7. INSTALL REAR SEAT ASSEMBLY RH (w/o Rear No. 2 Seat)

    Click here

  8. INSTALL REAR SEAT CUSHION HEATER (SEPARATE TYPE REAR SEAT CUSHION COVER) (w/ Rear No. 2 Seat)

    Tech Tips

    When installing a rear seat cushion heater (separate type rear seat cushion cover), refer to Precaution in order to prevent wrinkles from forming.

    Click here


    1. B005MJ9N01

      Using hog ring pliers, install 20 new hog rings in the order shown in the illustration.

      Note


      • Be careful not to damage the rear seat cushion heater (separate type rear seat cushion cover).

      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the rear seat cushion heater (separate type rear seat cushion cover).

    2. B005NVZN01

      Using hog ring pliers, install the rear seat cushion heater (separate type rear seat cushion cover) to the rear seat cushion pad RH with 10 new hog rings in the order shown in the illustration.

      Note


      • Be careful not to damage the rear seat cushion heater (separate type rear seat cushion cover).

      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the rear seat cushion heater (separate type rear seat cushion cover).

  9. INSTALL SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD (w/ Rear No. 2 Seat)

    Click here

  10. INSTALL REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY RH (w/ Rear No. 2 Seat)

    Click here

  11. INSTALL NO. 1 RECLINING ADJUSTER RELEASE HANDLE RH (w/ Rear No. 2 Seat)

    Click here

  12. INSTALL REAR SEAT COVER CAP RH (w/ Rear No. 2 Seat)

    Click here

  13. INSTALL REAR NO. 1 SEAT ASSEMBLY RH (w/ Rear No. 2 Seat)

    Click here
