TRANSMISSION CONTROL CABLE REMOVAL

PROCEDURE

  1. REMOVE REAR CONSOLE BOX SUB-ASSEMBLY

    Click here

  2. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

    Click here

  3. REMOVE INVERTER WITH CONVERTER ASSEMBLY

    Click here

  4. REMOVE NO. 1 ENGINE UNDER COVER

    Click here

  5. REMOVE INVERTER WATER PUMP WITH MOTOR ASSEMBLY

    Click here

  6. REMOVE INVERTER BRACKET ASSEMBLY

    Click here

  7. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY

    1. Move the shift lever to N.

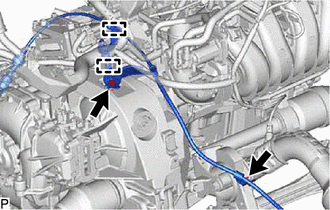

    2. C300210

      Disconnect the clamp and transmission control cable assembly from the No. 2 transmission control cable bracket.

    3. Remove the 2 bolts, and disconnect the clamp and transmission control cable assembly.

    4. A311126

      Remove the nut and disconnect the transmission control cable assembly from the control shaft lever.

    5. Remove the clip from the transmission control cable assembly.

    6. C341684

      Remove the 2 bolts and transmission control cable assembly.
