PRE-CRASH SAFETY SYSTEM WARNING BUZZER REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE

  1. REMOVE DECK BOARD ASSEMBLY

    Click here

  2. REMOVE BATTERY SERVICE COVER

    Click here

  3. PRECAUTION

    Note:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the auxiliary battery terminal notice before proceeding with work.

    Click hereClick hereClick hereClick here

  4. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click hereClick hereClick here

  5. REMOVE CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL

    Click here

  6. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY

    Click here

  7. REMOVE NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY

    Click here

  8. REMOVE TELLTALE LIGHT ASSEMBLY

    Click here

  9. REMOVE STEREO OPENING COVER (w/o Audio)

    Click here

  10. REMOVE RADIO RECEIVER ASSEMBLY (w/ Audio, for Radio Receiver Type)

    Click here

  11. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY (w/ Audio, for Radio and Display Type)

    Click here

  12. REMOVE SKID CONTROL BUZZER (PRE-CRASH SAFETY SYSTEM WARNING BUZZER)

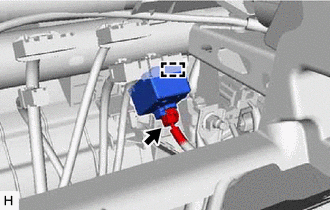

    1. B425042

      Using a clip remover, detach the clamp and remove the skid control buzzer (pre-crash safety system warning buzzer).

    2. Disconnect the connector.
