BRAKE BOOSTER PUMP COMPONENTS
ILLUSTRATION
*A |
w/o Full Size Spare Tire |
*B |
w/ Full Size Spare Tire |
*1 |
BATTERY SERVICE COVER |
*2 |
DECK BOARD ASSEMBLY |
*3 |
NEGATIVE AUXILIARY BATTERY TERMINAL |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

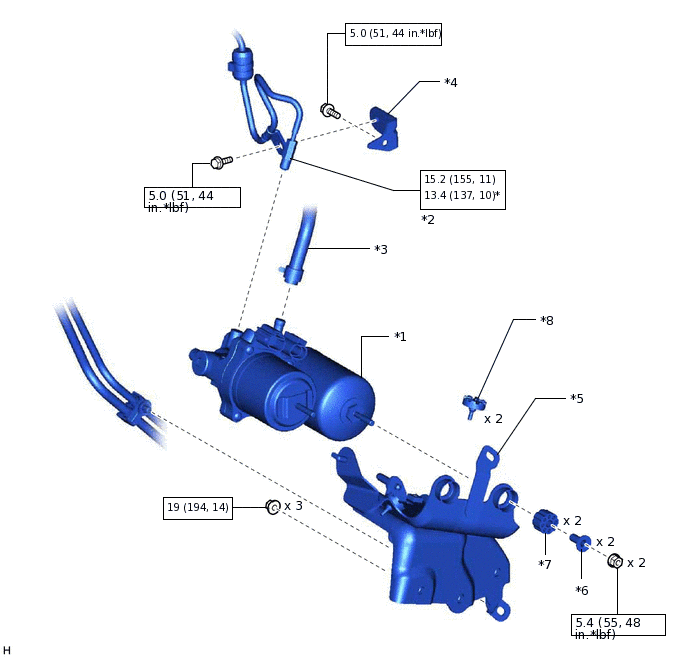

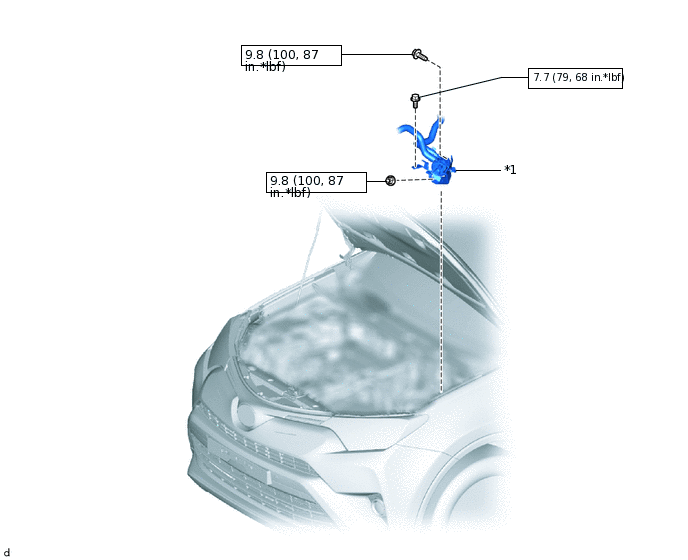

ILLUSTRATION
*1 |
HEATER ACCESSORY ASSEMBLY |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
ILLUSTRATION
*1 |
BRAKE BOOSTER PUMP ASSEMBLY |
*2 |
FRONT NO. 1 BRAKE TUBE |
*3 |
NO. 1 BRAKE ACTUATOR HOSE |
*4 |
NO. 1 BRAKE TUBE CLAMP BRACKET |
*5 |
BRAKE ACTUATOR BRACKET ASSEMBLY |
*6 |
BRAKE ACTUATOR CASE COLLAR |
*7 |
BRAKE BOOSTER PUMP BUSHING |
*8 |
BRAKE ACTUATOR BRACKET CUSHION |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
* |
For use with union nut wrench |
