RADIO ANTENNA CORD(for Roof Side) COMPONENTS
ILLUSTRATION
*A |
w/o Spare Tire, for Compact Spare Tire |
*B |
for Full Size Spare Tire |
*1 |
DECK BOARD ASSEMBLY |
*2 |
BATTERY SERVICE COVER |
*3 |
NEGATIVE AUXILIARY BATTERY TERMINAL |
- |
- |

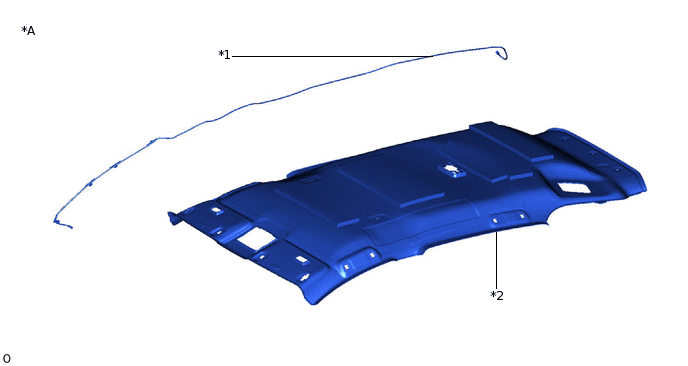

ILLUSTRATION
*A |
w/o Sliding Roof |
- |
- |
*1 |
NO. 2 ANTENNA CORD SUB-ASSEMBLY |
*2 |
ROOF HEADLINING ASSEMBLY |

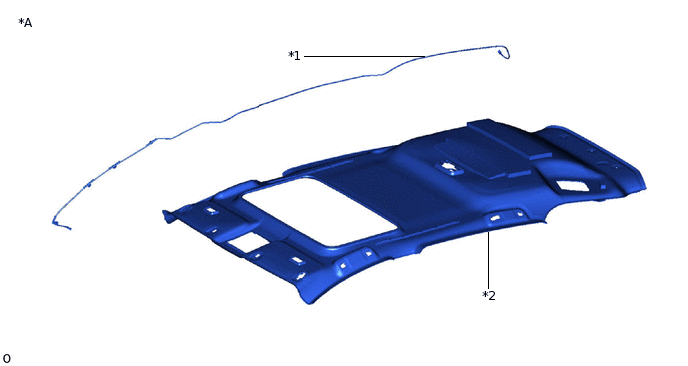

ILLUSTRATION
*A |
w/ Sliding Roof |
- |
- |
*1 |
NO. 2 ANTENNA CORD SUB-ASSEMBLY |
*2 |
ROOF HEADLINING ASSEMBLY |

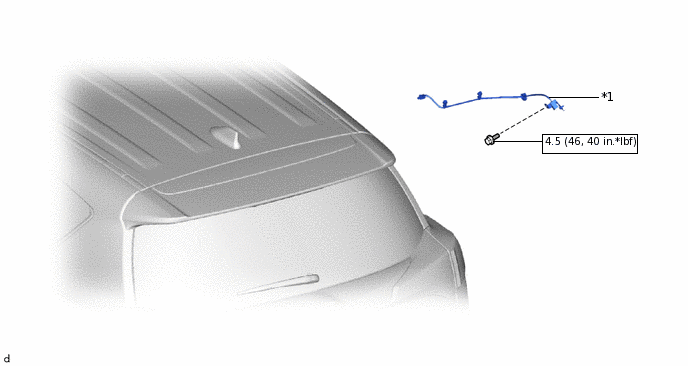

ILLUSTRATION
*1 |
NO. 3 ANTENNA CORD SUB-ASSEMBLY |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
