POWER SEAT SWITCH(for Rear Side) REMOVAL

PROCEDURE


  1. REMOVE POWER SEAT SWITCH ASSEMBLY (for 60/40 Split Seat Type RH Side)


    1. B005OFWC01
      B007Z37 Remove in this Direction

      Using a moulding remover A, disengage the 2 claws as shown in the illustration.

    2. B005Q8N

      Disconnect the connector to remove the power seat switch assembly.

  2. REMOVE REAR POWER SEAT SWITCH RH (for 60/40 Split Seat Type RH Side)


    1. B005PLPC01
      B007Z37 Remove in this Direction

      Disengage the 2 claws to remove the rear power seat switch RH as shown in the illustration.

  3. REMOVE POWER SEAT SWITCH ASSEMBLY (for 60/40 Split Seat Type LH Side)

    Tech Tips

    Use the same procedure as for the RH side.

  4. REMOVE REAR POWER SEAT SWITCH LH (for 60/40 Split Seat Type LH Side)

    Tech Tips

    Use the same procedure as for the RH side.

  5. REMOVE FOLD SEAT SWITCH ASSEMBLY (for Luggage Compartment)

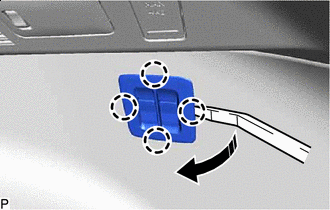

    1. B005N3LC01
      B007Z37 Remove in this Direction

      Using a moulding remover A, disengage the 4 claws as shown in the illustration.

    2. Disconnect the connector to remove the fold seat switch assembly.
