FRONT SEAT ASSEMBLY(for Power Seat) INSTALLATION

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE

  1. INSTALL FRONT SEAT ASSEMBLY LH

    1. Place the front seat assembly LH in the cabin.

      Note:

      Be careful not to damage the vehicle body.

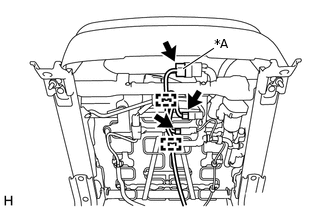

    2. B340379C06

      *A

      w/ Seat Heater System

      Attach the 2 clamps to connect the connector of the front seat inner belt assembly LH.

    3. Connect the connector of the front seat airbag assembly LH.

    4. w/ Seat Heater System:

      Connect the connector of the seat heater.

    5. Temporarily install the front seat assembly with the 4 bolts.

    6. Connect the cable to the auxiliary battery negative (-) terminal.

      Note:

      When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

      Click hereClick hereClick here

    7. Operate the front power seat switch (slide switch) to move the seat to the rearmost position.

    8. B340376

      Tighten the 2 bolts.

      37 N*m

      377 kgf*cm

      27 ft.*lbf

    9. Operate the front power seat switch (slide switch) to move the seat to the foremost position.

    10. B340375

      Tighten the 2 bolts.

      37 N*m

      377 kgf*cm

      27 ft.*lbf

    11. During sliding operation of the front seat, check that the left and right adjusters move together smoothly and lock simultaneously. If the seat adjusters do not lock simultaneously, loosen the seat mounting bolts to adjust the adjuster position.

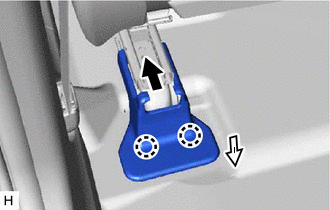

  2. INSTALL REAR OUTER SEAT TRACK BRACKET COVER LH

    1. B340372C01
      V100135

      First
      V100136

      Second

      Attach the 2 claws to install the rear outer seat track bracket cover LH as indicated by the arrows in the order shown in the illustration.

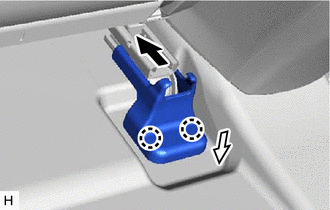

  3. INSTALL REAR INNER SEAT TRACK BRACKET COVER LH

    1. B340374C01
      V100135

      First
      V100136

      Second

      Attach the 2 claws to install the rear inner seat track bracket cover LH as indicated by the arrows in the order shown in the illustration.

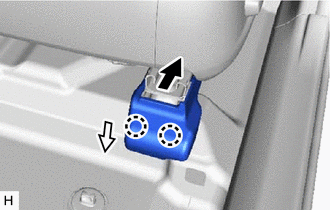

  4. INSTALL FRONT OUTER SEAT TRACK BRACKET COVER LH

    1. Operate the front power seat switch (slide switch) to move the seat to the rearmost position.

    2. B340368C01
      V100135

      First
      V100136

      Second

      Attach the 2 claws to install the front outer seat track bracket cover LH as indicated by the arrows in the order shown in the illustration.

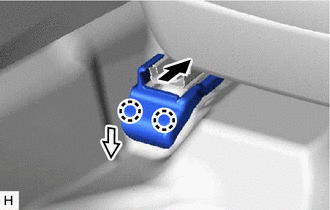

  5. INSTALL FRONT INNER SEAT TRACK BRACKET COVER LH

    1. B340370C01
      V100135

      First
      V100136

      Second

      Attach the 2 claws to install the front inner seat track bracket cover LH as indicated by the arrows in the order shown in the illustration.

  6. INSTALL FRONT SEAT HEADREST ASSEMBLY

    1. Install the front seat headrest assembly.

  7. CHECK SRS WARNING LIGHT

    Click here

  8. INSPECT FRONT POWER SEAT CONTROL SYSTEM

    1. w/ Memory:

      Click hereClick here

    2. w/o Memory:

      Click here

  9. INSPECT SEAT HEATER SYSTEM

    Click here

  10. INSTALL BATTERY SERVICE COVER

    Click here

  11. INSTALL DECK BOARD ASSEMBLY

    Click here
