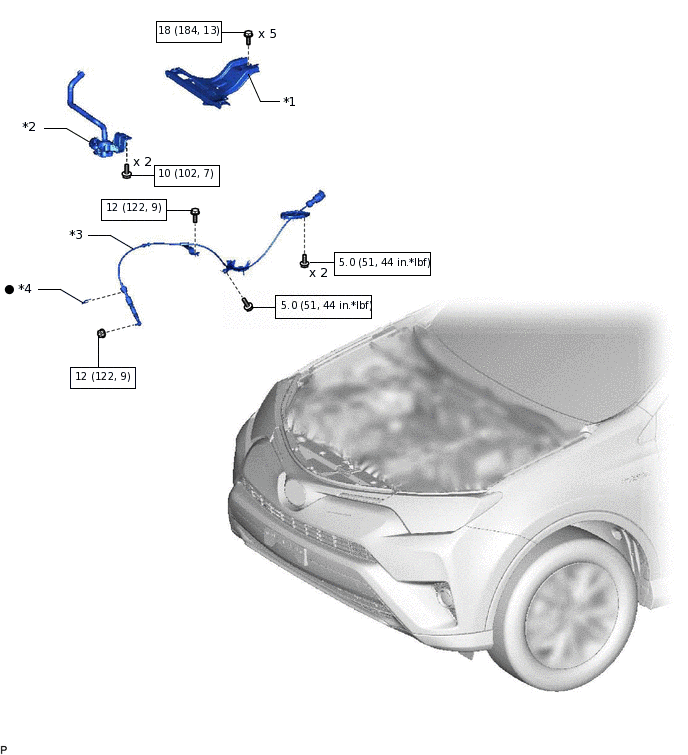

TRANSMISSION CONTROL CABLE COMPONENTS

*1	NO. 1 ENGINE UNDER COVER	-	-

*1	INVERTER BRACKET ASSEMBLY	*2	INVERTER WATER PUMP WITH MOTOR ASSEMBLY
*3	TRANSMISSION CONTROL CABLE ASSEMBLY	*4	CLIP
	Nm (kgfcm, ft.*lbf): Specified torque	●	Non-reusable part

*1

INVERTER BRACKET ASSEMBLY

*2

INVERTER WATER PUMP WITH MOTOR ASSEMBLY

*3

TRANSMISSION CONTROL CABLE ASSEMBLY

*4

CLIP

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part
