HEADLIGHT CLEANER MOTOR REMOVAL

PROCEDURE

  1. REMOVE FRONT BUMPER COVER

    Click here

  2. DRAIN WASHER FLUID

    1. Disconnect the washer hose from the headlight cleaner motor and pump assembly, and then drain the washer fluid.

  3. REMOVE HEADLIGHT CLEANER MOTOR AND PUMP ASSEMBLY

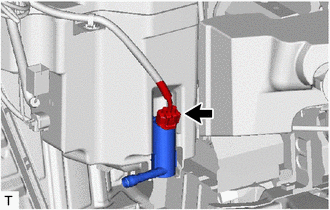

    1. E268391

      Disconnect the connector.

    2. E268375

      Pull out the headlight cleaner motor and pump assembly in the direction indicated by the arrow in the illustration to remove it.
