REAR SUSPENSION SYSTEM


  1. CONSTRUCTION


    1. A split-input type structure is adopted for the rear suspension support assembly to ensure excellent ride comfort, controllability and vehicle stability.

    2. Through the use of a urethane rear spring bumper and the optimization of its shape and clearance, the roll angle of the vehicle while turning is reduced.

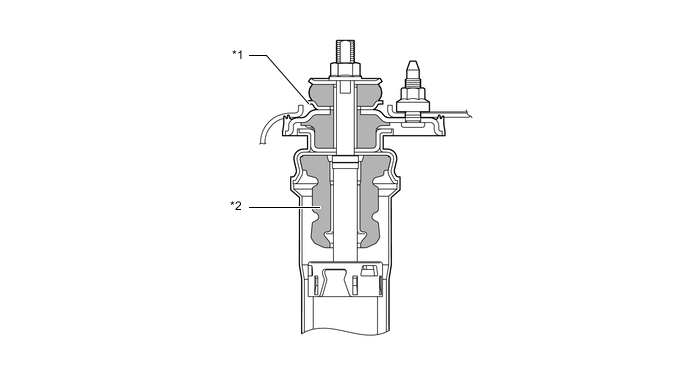

      A01O7BWC01
      *1 Rear Suspension Support Sub-assembly *2 Rear No. 1 Spring Bumper
