DOWNHILL ASSIST CONTROL SWITCH INSPECTION

PROCEDURE

  1. CHECK COMBINATION SWITCH ASSEMBLY (DOWNHILL ASSIST CONTROL SWITCH)

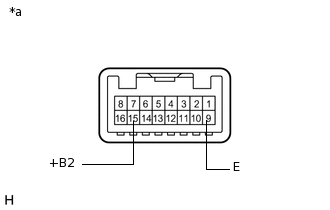

    1. C219806C07

      *a

      Component without harness connected

      (Combination Switch)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Switch Condition

      Specified Condition

      9 (E) - 15 (+B2)

      Pressed

      Below 1 Ω

      Not pressed

      10 kΩ or higher

      If the result is not as specified, replace the combination switch assembly (downhill assist control switch).
