FUEL PUMP(w/o Canister Pump Module) DISASSEMBLY

CAUTION / NOTICE / HINT

PROCEDURE

1. REMOVE NO. 1 FUEL SUB-TANK

   1.

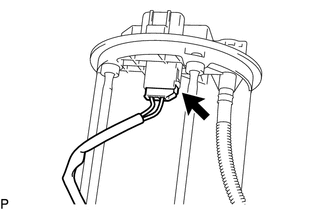

      Disconnect the fuel pump harness connector.

   2.

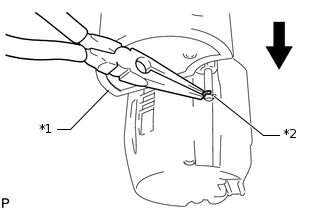

      *1	Fuel Suction Plate Sub-assembly
      *2	Fuel Tank Pipe Setting Holder
      	Lower

      Using needle nose pliers, remove the fuel tank pipe setting holder.

      Tip:

      Slightly lower the fuel suction plate sub-assembly to remove the fuel tank pipe setting holder.

   3.

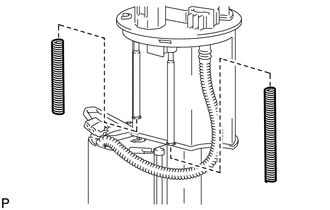

      Remove the No. 2 fuel tank cushion and No. 3 fuel tank cushion from the fuel suction plate sub-assembly.

   4.

      Using a screwdriver with its tip wrapped with protective tape, detach the 2 claws and remove the fuel filter assembly from the No. 1 fuel sub-tank.

   5.

      Detach the claw of the jet pump nozzle.

   6.

      *a	Jet Pump
      *b	Protective Tape

      Using a screwdriver with protective tape wrapped around it, remove the jet pump from the No. 1 fuel sub-tank.

      Tip:

      Tape the screwdriver tip before use.

   7.

      *1	O-Ring
      *a	Jet Pump

      Remove the O-ring from the jet pump.

2. REMOVE NO. 1 FUEL SUCTION SUPPORT

   1.

      Using needle-nose pliers, detach the 2 claws and remove the No. 1 fuel suction support from the fuel filter assembly.

3. REMOVE FUEL PUMP ASSEMBLY WITH FILTER

   1.

      *a	Fuel Main Tube

      Using a screwdriver with its tip wrapped with protective tape, detach the 5 claws and remove the fuel filter assembly from the fuel pump assembly with filter.

      Note:

      When detaching the claws, do not disconnect the fuel main tube.

   2.

      Disconnect the fuel pump harness connector.

   3.

      *1	O-Ring
      *2	Fuel Pump Spacer

      Remove the O-ring from the fuel pump assembly with filter.

   4. Remove the fuel pump spacer from the fuel pump assembly with filter.
