FRONT WIPER RUBBER REPLACEMENT

PROCEDURE

  1. REMOVE FRONT WIPER BLADE

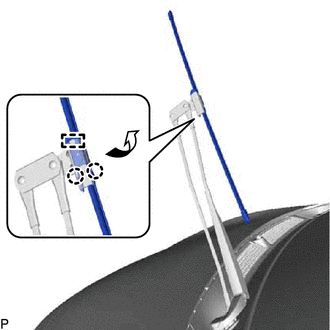

    1. E295056

      Disengage the 2 claws.

    2. Disengage the guide and remove the front wiper blade from the front wiper arm as shown in the illustration.

      Note:

      Do not lower the front wiper arm with the front wiper blade removed. The arm tip may damage the windshield glass surface.

  2. INSTALL FRONT WIPER BLADE

    1. E295386

      Engage the guide as shown in the illustration.

    2. Engage the 2 claws to install the front wiper blade to the front wiper arm.
