SIDE TURN SIGNAL LIGHT ASSEMBLY INSPECTION

PROCEDURE

1. INSPECT SIDE TURN SIGNAL LIGHT ASSEMBLY LH

   1.

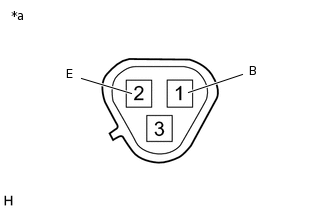

      *a	Component without harness connected (Side Turn Signal Light Assembly LH)

      Apply battery voltage to the connector and check the light illumination condition.

      OK

      Condition	Specified Condition
      Battery positive (+) → Terminal 1 (B) Battery negative (-) → Terminal 2 (E)	Illuminates

      If the result is not as specified, replace the side turn signal light assembly LH.

2. INSPECT SIDE TURN SIGNAL LIGHT ASSEMBLY RH

   1.

      *a	Component without harness connected (Side Turn Signal Light Assembly RH)

      Apply battery voltage to the connector and check the light illumination condition.

      OK

      Condition	Specified Condition
      Battery positive (+) → Terminal 1 (B) Battery negative (-) → Terminal 2 (E)	Illuminates

      If the result is not as specified, replace the side turn signal light assembly RH.
