REAR WIPER RUBBER INSTALLATION

PROCEDURE

1. INSTALL REAR WIPER RUBBER

   1.

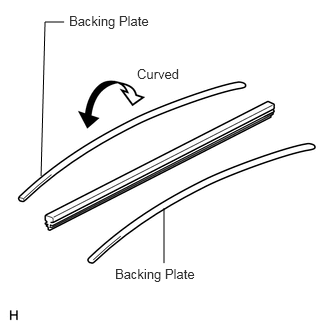

      Install the 2 backing plates as shown in the illustration.

      Note:

      Install the backing plates so that they are facing in the correct direction.

   2.

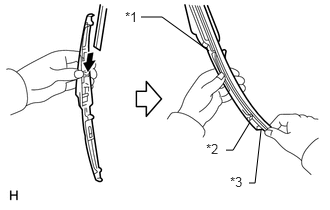

      Insert the wiper rubber into the front end of the wiper blade and slide it towards the rear end through the second claw.

      Table 1. Text in Illustration

      *1	Second Claw
      *2	Rear End Claw
      *3	Rear End Stopper

   3. After pushing the wiper rubber through the rear end claw, allow it to protrude past the rear end stopper.

   4.

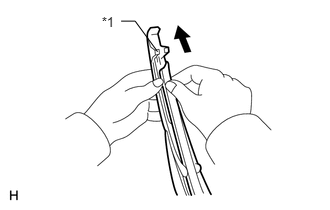

      Slide the wiper rubber through the front end claw.

      Table 2. Text in Illustration

      *1	Front End Claw

2. INSTALL REAR WIPER BLADE

   1.

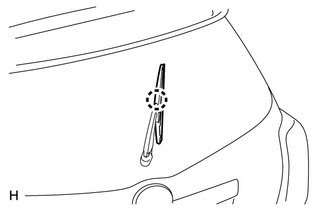

      Push the wiper blade straight toward the left side of the vehicle to attach the claw and install the wiper blade to the wiper arm.

      Note:

      Be careful not to damage the claw.

   2. Close the wiper blade holder.
