POWER SEAT SWITCH(for Rear Side) INSTALLATION

PROCEDURE


  1. INSTALL FOLD SEAT SWITCH ASSEMBLY (for Luggage Compartment)


    1. Connect the connector.

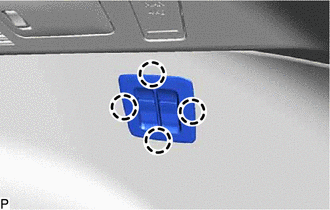

    2. A01RB28

      Engage the 4 claws to install the fold seat switch assembly.

  2. INSTALL REAR POWER SEAT SWITCH RH (for 60/40 Split Seat Type RH Side)

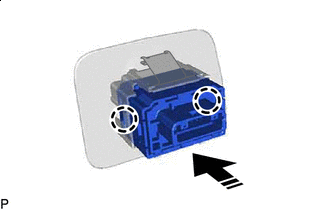

    1. A01RC8FC03
      B007Z37 Install in this Direction

      Engage the 2 claws to install the rear power seat switch RH as shown in the illustration.

  3. INSTALL POWER SEAT SWITCH ASSEMBLY (for 60/40 Split Seat Type RH Side)


    1. Connect the connector.

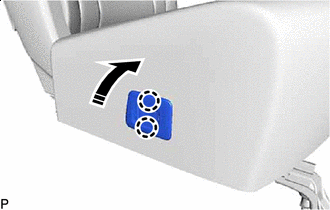

    2. A01RCXUC03
      B007Z37 Install in this Direction

      Engage the 2 claws to install the power seat switch assembly as shown in the illustration.

  4. INSTALL REAR POWER SEAT SWITCH LH (for 60/40 Split Seat Type LH Side)

    Tech Tips

    Use the same procedure as for the RH side.

  5. INSTALL POWER SEAT SWITCH ASSEMBLY (for 60/40 Split Seat Type LH Side)

    Tech Tips

    Use the same procedure as for the RH side.
