REAR WIPER MOTOR INSPECTION

PROCEDURE

1. INSPECT REAR WIPER MOTOR ASSEMBLY

   1.

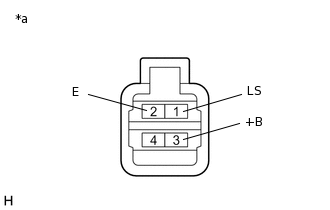

      *a	Component without harness connected (Rear Wiper Motor Assembly)

      Check the wiper continuous operation.

      1. Connect a battery positive (+) lead to terminal 3 (+B) and a negative (-) lead to terminal 1 (LS) and terminal 2 (E), and check that the motor operates.

         OK

         Motor operates.

         If the result is not as specified, replace the rear wiper motor assembly.
