CYLINDER HEAD GASKET COMPONENTS

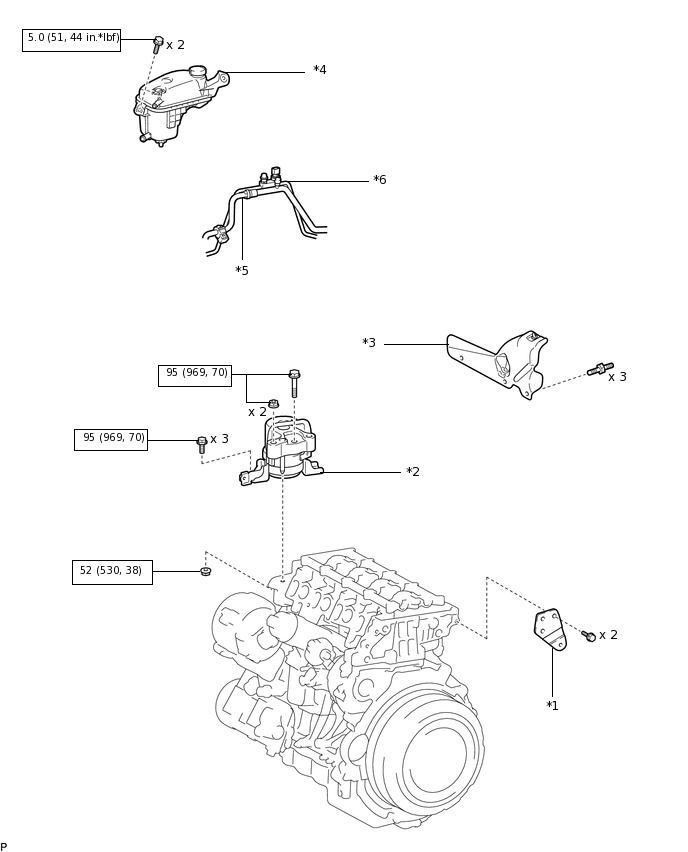

*1	EGR VALVE BRACKET	*2	ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH
*3	NO. 2 TURBO INSULATOR	*4	RADIATOR RESERVOIR ASSEMBLY
*5	SUCTION PIPE SUB-ASSEMBLY	*6	AIR CONDITIONER TUBE AND ACCESSORY ASSEMBLY
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

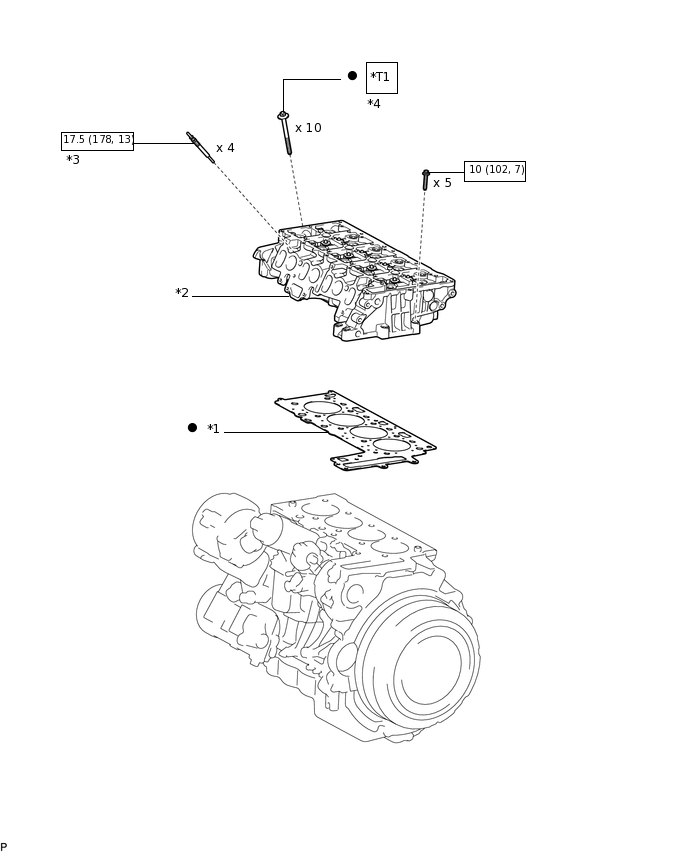

*1	CYLINDER HEAD GASKET	*2	CYLINDER HEAD SUB-ASSEMBLY
*3	GLOW PLUG ASSEMBLY	*4	CYLINDER HEAD BOLT
	Nm (kgfcm, ft.*lbf): Specified torque	●	Non-reusable part
*T1	1st: 70 (714, 52) 2nd: Loosen 180° 3rd: 50 (510, 37) 4th: Turn 120° 5th: Turn 120°	-	-

*1

CYLINDER HEAD GASKET

*2

CYLINDER HEAD SUB-ASSEMBLY

*3

GLOW PLUG ASSEMBLY

*4

CYLINDER HEAD BOLT

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

*T1

1st: 70 (714, 52)

2nd: Loosen 180°

3rd: 50 (510, 37)

4th: Turn 120°

5th: Turn 120°

-
