METER / GAUGE SYSTEM

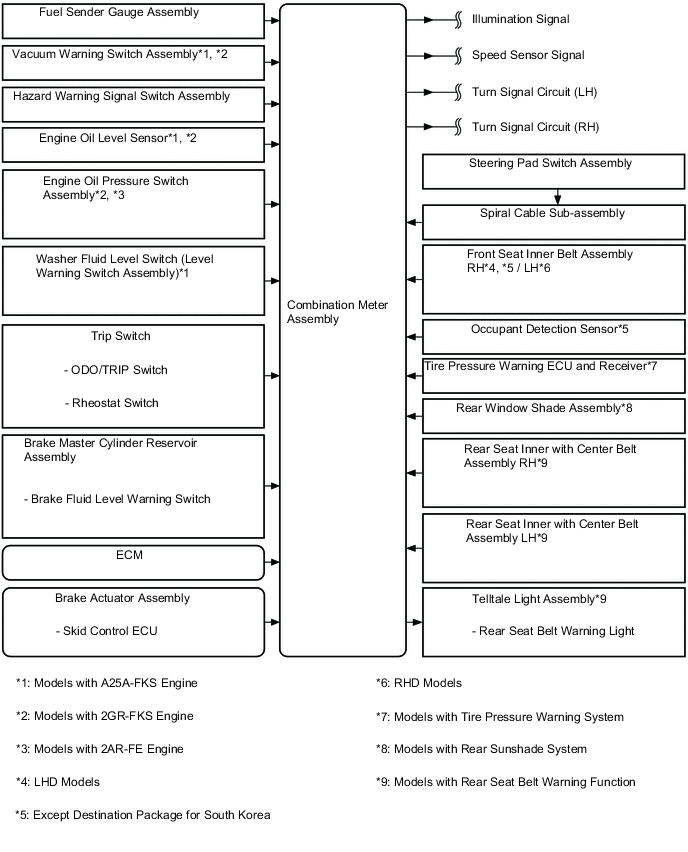

Figure 1. Direct Line Signal

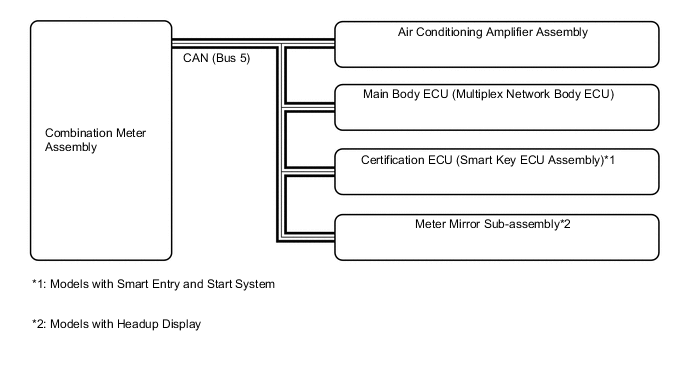

Figure 2. Network Signal (Bus 5)

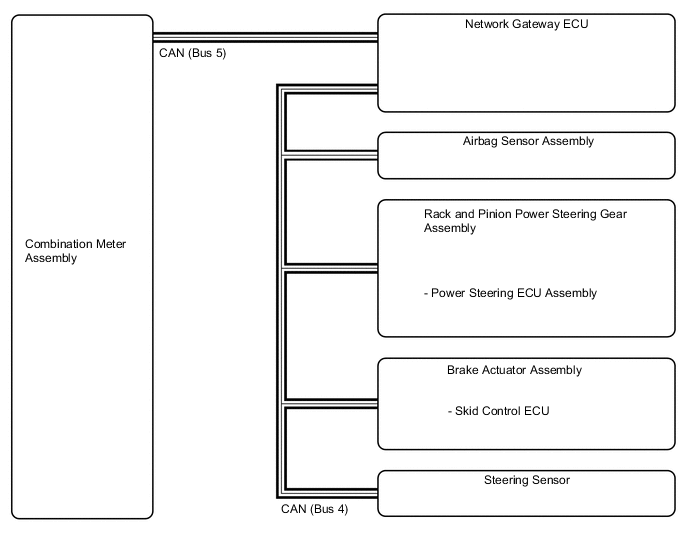

Figure 3. Network Signal (Bus 4, Bus 5)

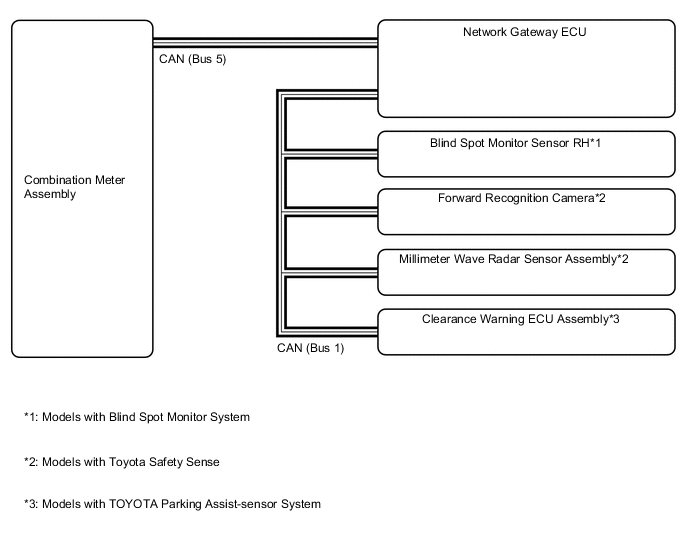

Figure 4. Network Signal (Bus 1, Bus 5)

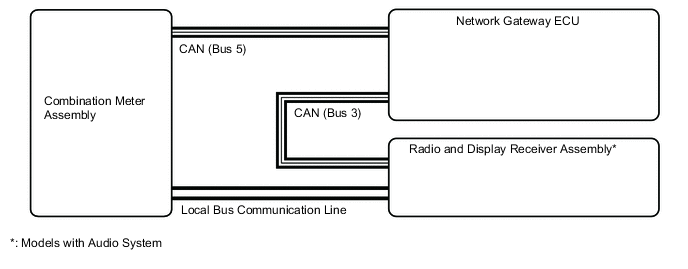

Figure 5. Network Signal (Bus 3, Bus 5)

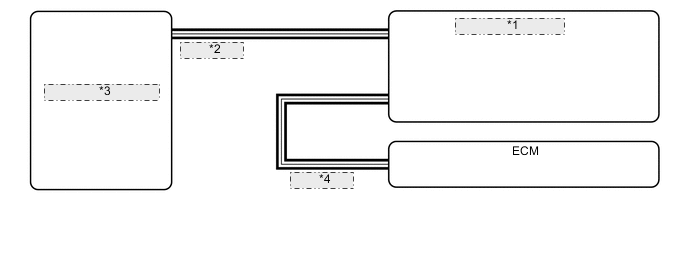

Figure 6. Network Signal (Bus 2, Bus 5)
