HYBRID TRANSAXLE FLUID ON-VEHICLE INSPECTION

PROCEDURE

1. INSPECT HYBRID TRANSAXLE FLUID

   1.

      *1	Bit
      *2	10 mm Socket Hexagon Wrench
      *3	10 mm Straight Hexagon

      Loosen the screw and remove the bit from the 10 mm socket hexagon wrench.

   2. Install the 10 mm straight hexagon to the 10 mm socket hexagon wrench with the screw.

   3.

      Turn

      Using a 10 mm socket hexagon wrench, remove the filler plug and gasket from the rear traction motor with transaxle assembly.

   4.

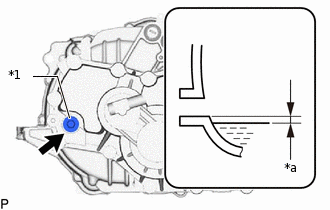

      *1	Filler Plug
      *a	0 to 5 mm (0 to 0.196 in.)

      Check that the fluid level is between 0 to 5 mm (0 to 0.196 in.) from the bottom lip of the filler plug opening. (If the fluid level is too low, return to the Add Hybrid Transaxle Fluid procedure.)

      Note:

      • Stop the vehicle on a level surface.

      • Be sure to directly check that the hybrid transaxle fluid level is within the specified range.

      • An insufficient or excessive amount of hybrid transaxle fluid may damage the rear traction motor with transaxle assembly.

      • If the hybrid transaxle fluid was replaced or hybrid transaxle fluid was added, make sure to recheck the hybrid transaxle fluid level after driving the vehicle.

   5. Check for leaks if the hybrid transaxle fluid level is low. (If there are no hybrid transaxle fluid leaks but the amount of the hybrid transaxle fluid is insufficient, add hybrid transaxle fluid.)

      Click here

   6.

      Turn

      Using a 10 mm socket hexagon wrench, install a new gasket and the filler plug to the rear traction motor with transaxle assembly.

      39 N*m

      398 kgf*cm

      29 ft.*lbf

   7. Return the modified 10 mm socket hexagon wrench to its original condition.
