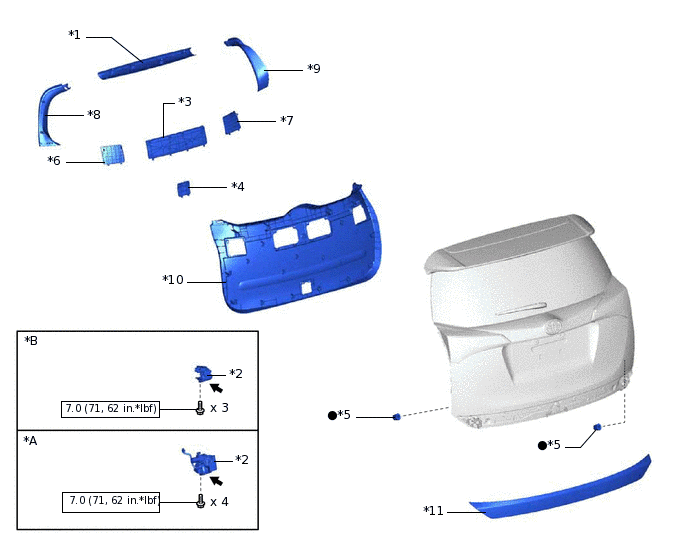

BACK DOOR COMPONENTS
ILLUSTRATION
*A |
w/ Power Back Door |
*B |
w/o Power Back Door |
*1 |
BACK DOOR CENTER GARNISH |
*2 |
BACK DOOR LOCK ASSEMBLY |
*3 |
BACK DOOR NO. 1 SERVICE HOLE COVER |
*4 |
BACK DOOR NO. 2 SERVICE HOLE COVER |
*5 |
BACK DOOR PANEL CUSHION |
*6 |
BACK DOOR SERVICE HOLE COVER LH |
*7 |
BACK DOOR SERVICE HOLE COVER RH |
*8 |
BACK DOOR SIDE GARNISH LH |
*9 |
BACK DOOR SIDE GARNISH RH |
*10 |
BACK DOOR TRIM BOARD ASSEMBLY |
*11 |
LOWER BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
 |
MP grease |
- |
- |

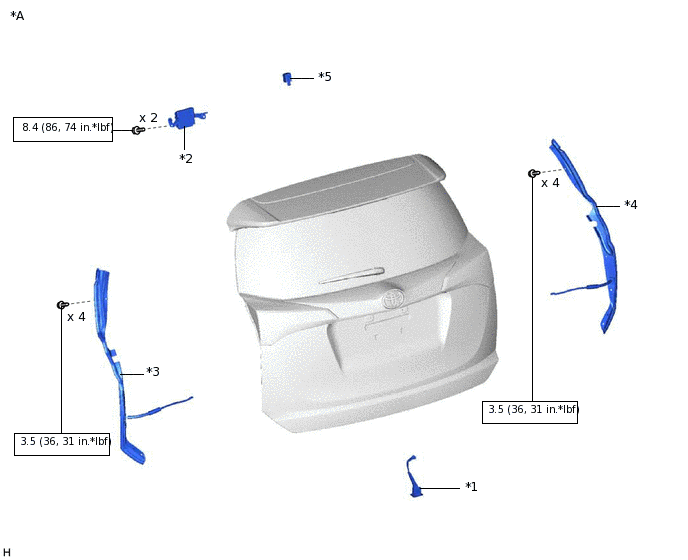

ILLUSTRATION
*A |
w/ Power Back Door |
- |
- |
*1 |
DOOR CONTROL SWITCH ASSEMBLY |
*2 |
MULTIPLEX NETWORK DOOR ECU |
*3 |
POWER BACK DOOR SENSOR ASSEMBLY LH |
*4 |
POWER BACK DOOR SENSOR ASSEMBLY RH |
*5 |
WIRELESS DOOR LOCK BUZZER |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

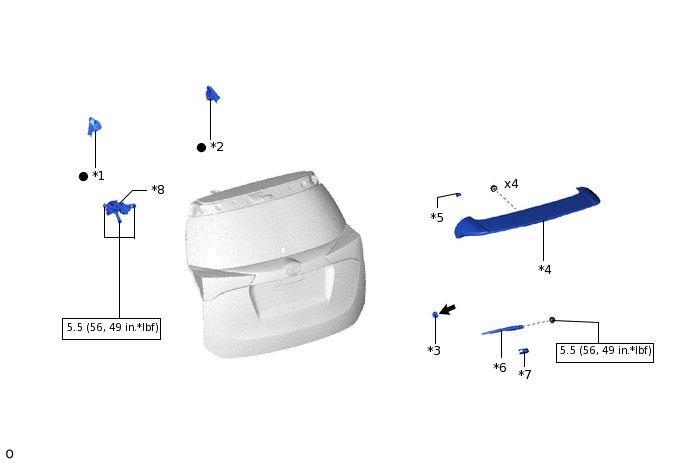

ILLUSTRATION
*1 |
BACK DOOR GLASS CHANNEL LH |
*2 |
BACK DOOR GLASS CHANNEL RH |
*3 |
NO. 1 REAR WIPER LINK PIVOT WASHER |
*4 |
REAR SPOILER |
*5 |
REAR WASHER NOZZLE SUB-ASSEMBLY |
*6 |
REAR WIPER ARM AND BLADE ASSEMBLY |
*7 |
REAR WIPER ARM COVER |
*8 |
REAR WIPER MOTOR ASSEMBLY |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
|
MP grease |
- |
- |

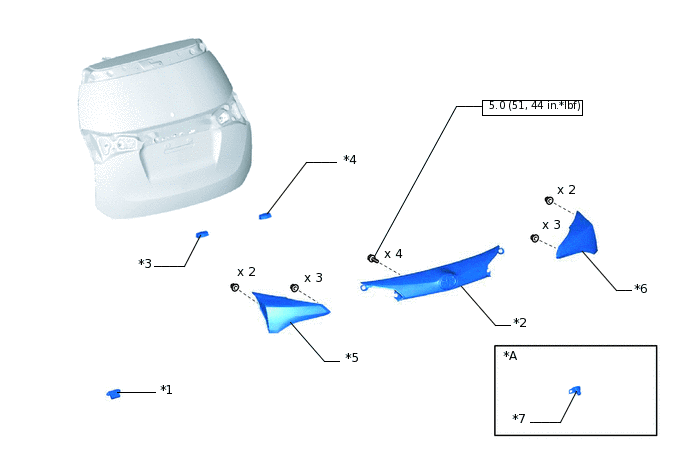

ILLUSTRATION
*A |
w/ Television Camera |
- |
- |
*1 |
BACK DOOR OPENER SWITCH ASSEMBLY |
*2 |
BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY |
*3 |
LICENSE PLATE LIGHT ASSEMBLY LH |
*4 |
LICENSE PLATE LIGHT ASSEMBLY RH |
*5 |
REAR LIGHT ASSEMBLY LH |
*6 |
REAR LIGHT ASSEMBLY RH |
*7 |
TELEVISION CAMERA ASSEMBLY |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

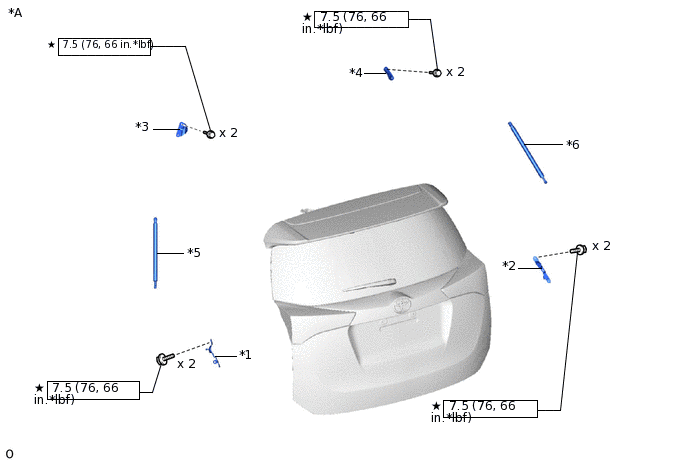

ILLUSTRATION
*A |
w/o Power Back Door |
- |
- |
*1 |
BACK DOOR DAMPER STAY LOWER BRACKET LH |
*2 |
BACK DOOR DAMPER STAY LOWER BRACKET RH |
*3 |
BACK DOOR DAMPER STAY UPPER BRACKET LH |
*4 |
BACK DOOR DAMPER STAY UPPER BRACKET RH |
*5 |
BACK DOOR STAY ASSEMBLY LH |
*6 |
BACK DOOR STAY ASSEMBLY RH |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
★ |
Precoated part |

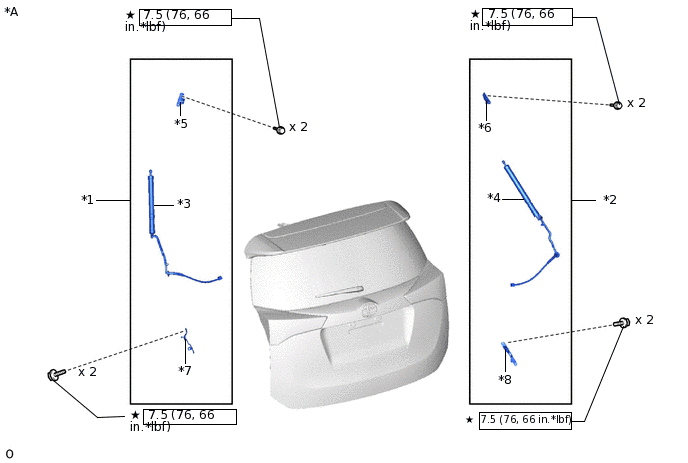

ILLUSTRATION
*A |
w/ Power Back Door |
- |
- |
*1 |
POWER BACK DOOR UNIT ASSEMBLY SET LH |
*2 |
POWER BACK DOOR UNIT ASSEMBLY SET RH |
*3 |
SPINDLE LH |
*4 |
SPINDLE RH |
*5 |
BACK DOOR DAMPER STAY UPPER BRACKET LH |
*6 |
BACK DOOR DAMPER STAY UPPER BRACKET RH |
*7 |
BACK DOOR DAMPER STAY LOWER BRACKET LH |
*8 |
BACK DOOR DAMPER STAY LOWER BRACKET RH |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
★ |
Precoated part |
